Front Drive Shaft (Tripod Joint) Disassembly/Assembly: MTX

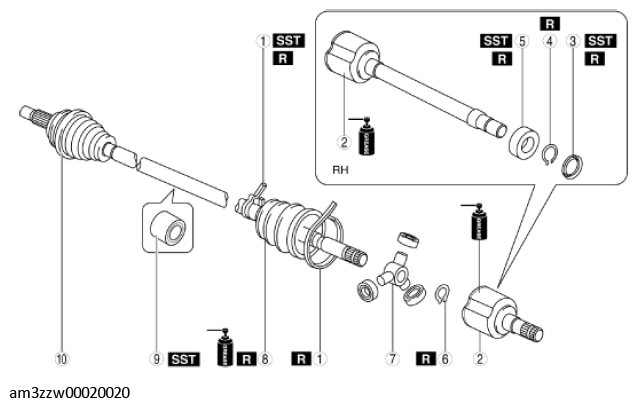

Fig 1: Front Drive Shaft (Tripod Joint) Components Location (MTX)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Boot band (transaxle side) (See Boot Band (Transaxle Side) Disassembly Note [MTX1] .) (See Boot Band (Transaxle Side) Assembly Note [MTX1] .)
2	Outer ring (See Outer Ring Disassembly Note .) (See Outer Ring Assembly Note .)
3	Dust cover (See Dust Cover Disassembly Note .) (See Dust Cover Assembly Note .)
4	Snap ring
5	Bearing (See Bearing Disassembly Note .) (See Bearing Assembly Note .)
6	Snap ring (See Snap Ring, Tripod Joint Disassembly Note .) (See Tripod Joint, Snap Ring Assembly Note .)
7	Tripod joint (See Snap Ring, Tripod Joint Disassembly Note .) (See Tripod Joint, Snap Ring Assembly Note .)
8	Boot (transaxle side) (See Boot (Transaxle Side) Disassembly Note .) (See Boot (Transaxle Side) Assembly Note .)
9	Dynamic damper (See Dynamic Damper Disassembly Note .) (See Dynamic Damper Assembly Note .)
10	Outer joint component
