Dynamic Damper Assembly Note

1. Apply soapy water to the inside of the dynamic damper.
2. Assemble the dynamic damper using the SST, spacers (such as spare nuts), and a press.
   Fig 1: Assembling Dynamic Damper Using SST

   Courtesy of MAZDA MOTORS CORP.
3. Verify that the installation position of the dynamic damper is within the specification.

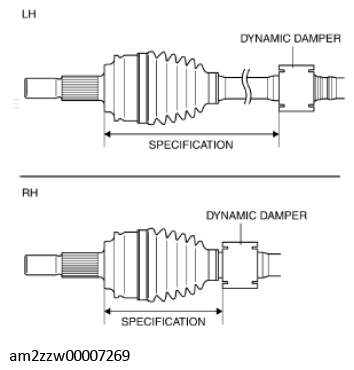

Fig 2: Dynamic Damper Installation Position

Courtesy of MAZDA MOTORS CORP.

Specification
