Dynamic Damper Disassembly Note

  1. Remove the dynamic damper using the SST, spacers (such as spare nuts), and a press.

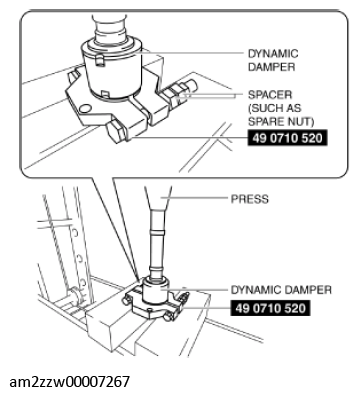

    Fig 1: Removing Dynamic Damper Using SST
    G11427146Courtesy of MAZDA MOTORS CORP.
