Power Liftgate (PLG) Buzzer Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Liftgate upper trim (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
    2. Liftgate side trim (See LIFTGATE SIDE TRIM REMOVAL/INSTALLATION .)
    3. Liftgate recess (See LIFTGATE RECESS REMOVAL/INSTALLATION .)
    4. Power liftgate (PLG) rear switch (See POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION .)
    5. Liftgate lower trim (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the connector.

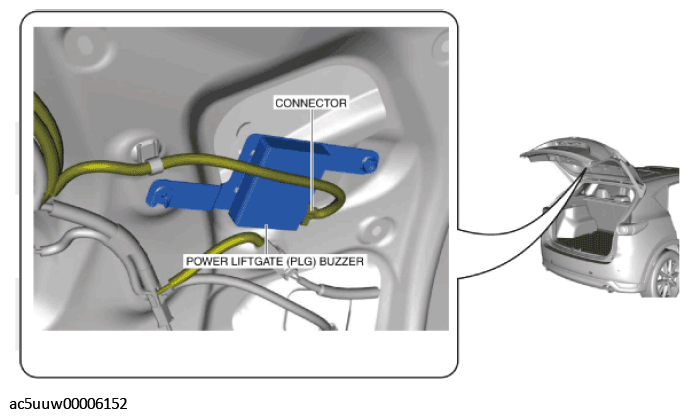

    Fig 1: Locating Power Liftgate (PLG) Buzzer Connector
    G11425955Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.

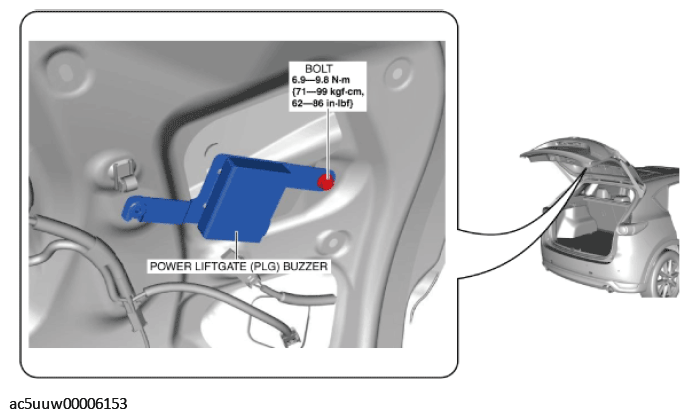

    Fig 2: Power Liftgate (PLG) Buzzer Bolt With Torque Specifications
    G11425956Courtesy of MAZDA MOTORS CORP.
  5. Move the power liftgate (PLG) buzzer in the direction of the arrow shown in the figure and detach the power liftgate (PLG) buzzer from the clip.

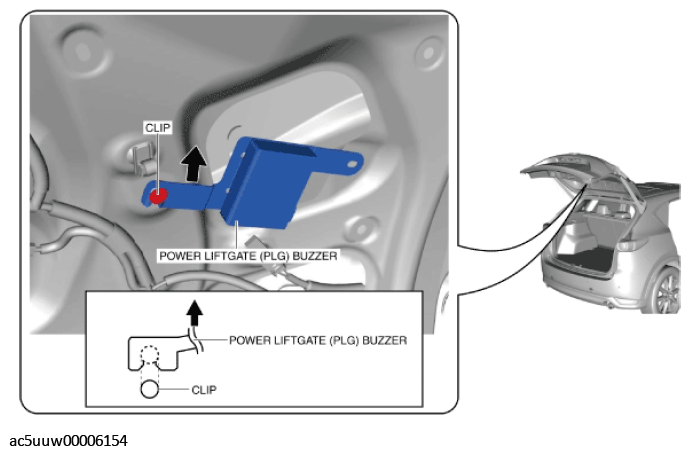

    Fig 3: Detaching Power Liftgate (PLG) Buzzer From Clip
    G11425957Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
