Rear Spoiler Removal

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the service hole covers.

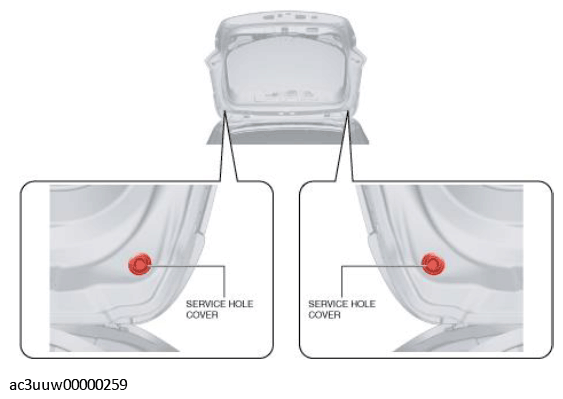

    Fig 1: Removing Rear Spoiler Service Hole Covers
    G11434179Courtesy of MAZDA MOTORS CORP.
  4. Remove the nuts.

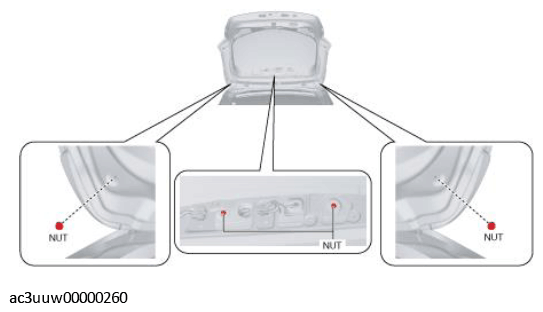

    Fig 2: Removing Rear Spoiler Nuts
    G11434180Courtesy of MAZDA MOTORS CORP.
  5. Move the remover tool in the direction of the arrows shown in the figure and detach the clips of the rear spoiler from the liftgate.

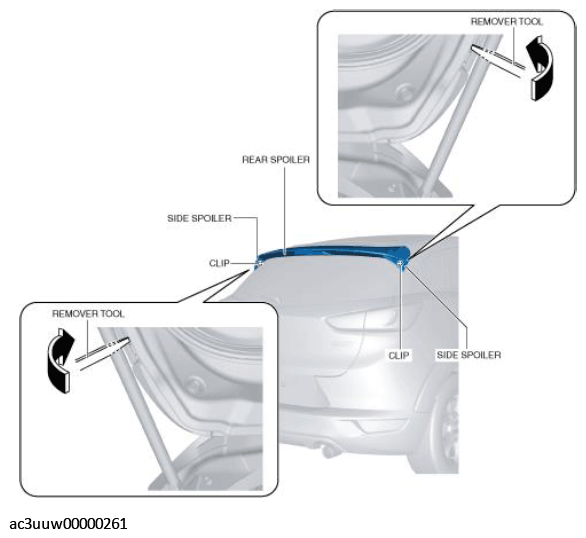

    Fig 3: Moving Rear Spoiler Remover Tool
    G11434181Courtesy of MAZDA MOTORS CORP.
  6. Pull the rear spoiler in the order of the arrows shown in the figure and detach the rear spoiler pins from the liftgate.

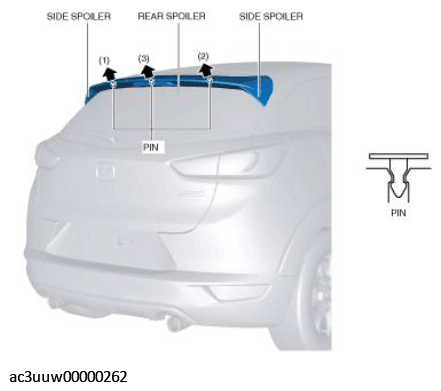

    Fig 4: Pulling Rear Spoiler
    G11434182Courtesy of MAZDA MOTORS CORP.
  7. Disconnect the high-mount brake light connector.

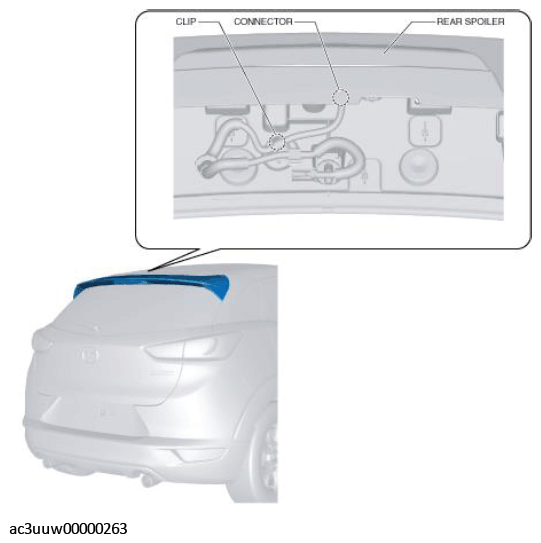

    Fig 5: Disconnecting High-Mount Brake Light Connector
    G11434183Courtesy of MAZDA MOTORS CORP.
  8. Remove the wiring harness clips secured to the rear spoiler.
  9. Remove the rear spoiler and the side spoiler as a single unit.
  10. Remove the high-mount brake light. (See HIGH-MOUNT BRAKE LIGHT REMOVAL/INSTALLATION .)
  11. Remove the side spoiler. (See SIDE SPOILER REMOVAL/INSTALLATION .)
