High-Mount Brake Light Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL ) (See REAR SPOILER INSTALLATION .)
  4. Remove the screws.

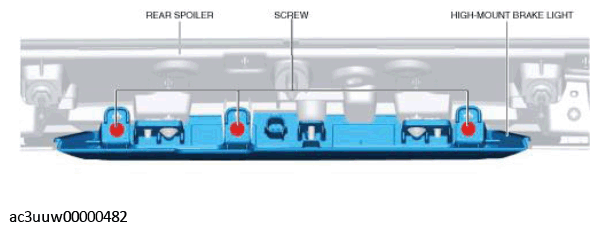

    Fig 1: Removing High-Mount Brake Light Screws
    G11449726Courtesy of MAZDA MOTORS CORP.
  5. Remove the cover.

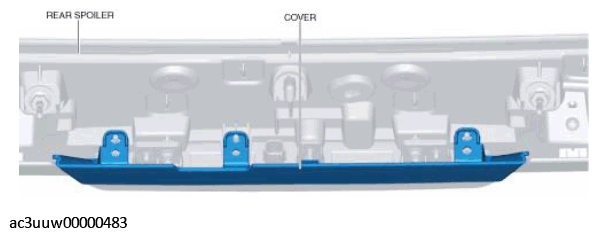

    Fig 2: Installing Cover
    G11449727Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.

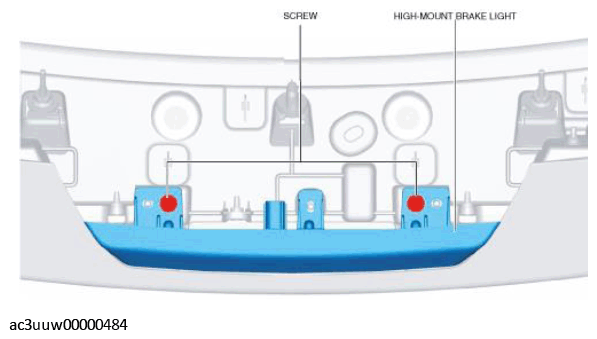

    Fig 3: Removing Screws
    G11449728Courtesy of MAZDA MOTORS CORP.
  7. Remove the high-mount brake light.
  8. Install in the reverse order of removal.
