Side Spoiler Removal/Installation

  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  3. Remove the rear spoiler. (See REAR SPOILER REMOVAL .) (See REAR SPOILER INSTALLATION .)
  4. Remove the screws.

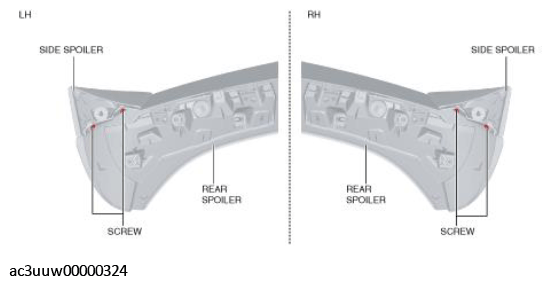

    Fig 1: Installing Side Spoiler Screws
    G11434227Courtesy of MAZDA MOTORS CORP.
  5. Move the side spoilers in the direction of the arrows shown in the figure and pull the side spoiler pins out of the rear spoiler.

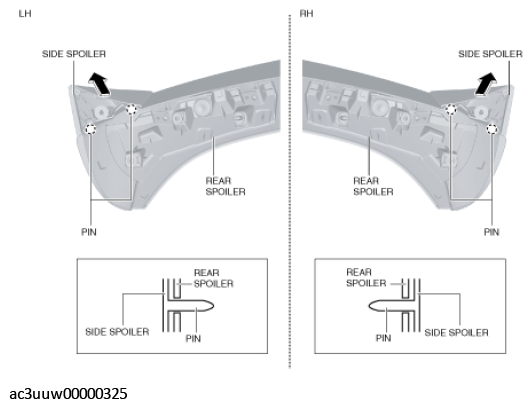

    Fig 2: Pulling Side Spoiler Pins Out Of Rear Spoiler
    G11434228Courtesy of MAZDA MOTORS CORP.
  6. Remove the side spoiler.
  7. Install in the reverse order of removal.
