Bluetooth® UNIT REMOVAL/INSTALLATION

CAUTION:
  • The audio unit determines the presence/non-presence of a Bluetooth® unit and records it based on the communication status when the ignition is switched ON (engine off or on) or to the ACC position for the first time after the negative battery cable is connected.
  • If the negative battery cable is connected while the audio unit has recorded the non-presence of the Bluetooth® unit and thereafter a Bluetooth® unit is installed, the installed Bluetooth® unit will not operate.
  • When installing or removing the Bluetooth® unit, always disconnect the negative battery cable, and after the servicing is completed, switch the ignition to ACC or ON (engine off or on) to allow the audio unit to record the presence/non-presence of the Bluetooth® unit.
NOTE:
  • The Bluetooth® pairing information recorded in the Bluetooth® unit cannot be written to a new Bluetooth® unit. Therefore, the Bluetooth® pairing information will be eliminated if the Bluetooth® unit is replaced. Before replacing the Bluetooth® unit, explain to the customer that the Bluetooth® pairing resetting is required.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.5] .)
  2. Remove the following parts:
    1. Front scuff plate (RH) (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Front side trim (RH) (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Upper column cover (See COLUMN COVER REMOVAL/INSTALLATION .)
    4. Meter hood (See METER HOOD REMOVAL/INSTALLATION .)
    5. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    7. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    8. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION .)
  3. Remove the bolts.

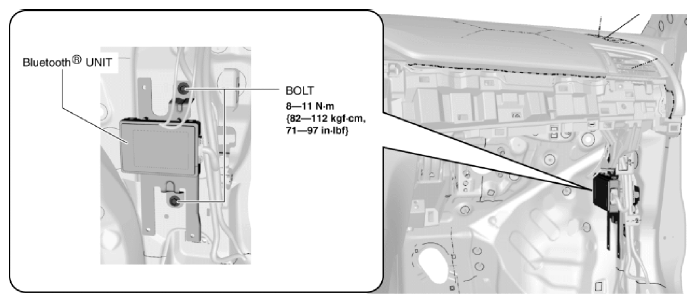

    Fig 1: Identifying Bluetooth Unit Bolts With Torque Specifications
    G10988255Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connector.

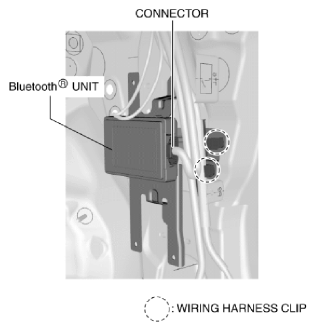

    Fig 2: Identifying Bluetooth Unit Connector And Wiring Harness Clip
    G10988256Courtesy of MAZDA MOTORS CORP.
  5. Pull out the wiring harness clip.
  6. Remove the Bluetooth® unit component.
  7. Remove the screws.
    Fig 3: Identifying Bluetooth Unit Screws
    G10988257Courtesy of MAZDA MOTORS CORP.
  8. Remove the Bluetooth® unit.
  9. Install in the reverse order of removal.
