Meter Hood Removal/Installation

  1. Remove the upper column cover. (See COLUMN COVER REMOVAL/INSTALLATION .)
  2. Move the meter hood in the order of arrows (1), (2), and (3) shown in the figure, and detach clips.

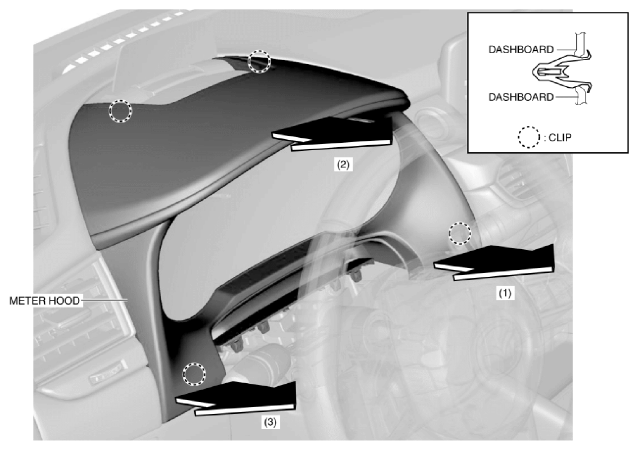

    Fig 1: Moving Meter Hood
    G11011951Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
