Front Side Trim Removal/Installation

  1. Remove the front scuff plate. (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
  2. Partially peel back the seaming welt.
  3. Remove the cap nut.

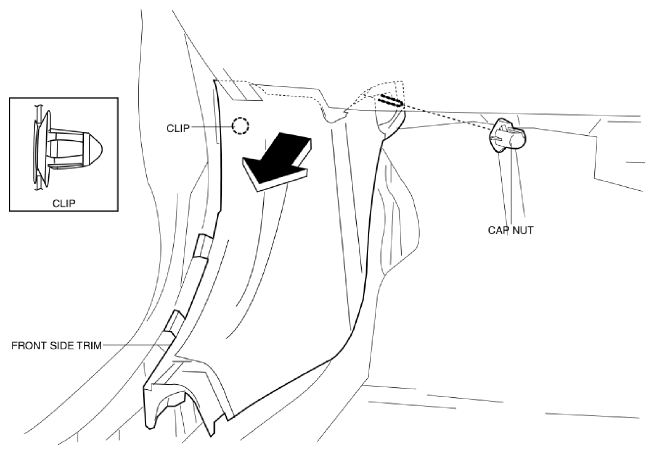

    Fig 1: Pulling Out Front Side Trim
    G11011992Courtesy of MAZDA MOTORS CORP.
  4. Pull the front side trim in the direction of the arrow shown in the figure and remove it while detaching the clip.
  5. Install in the reverse order of removal.
