Dashboard Under Cover Removal/Installation

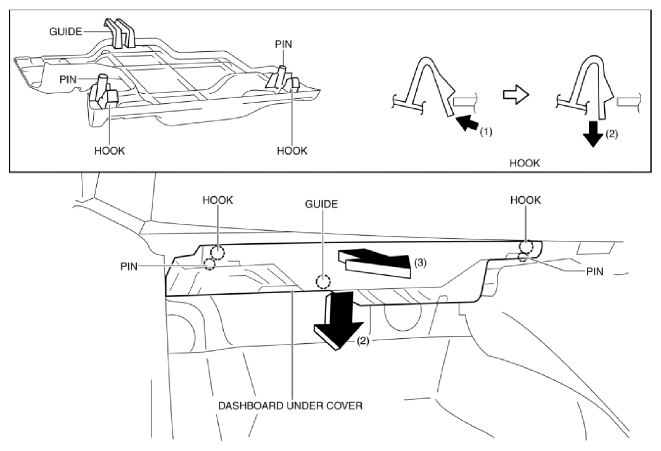

- Detach hooks in the direction of arrow (1) shown in the figure.
Courtesy of MAZDA MOTORS CORP.
- Pull the dashboard under cover in the direction of arrow (2) while detaching pins.
- Remove the dashboard under cover in the direction of the arrow (3) shown in the figure while detaching the guide.
CAUTION:
- If hooks and pins are removed forcefully, guide may be damaged. Carefully remove hooks and pins so as not to damage guide.
- Install in the reverse order of removal.
