Sliding Door Open Stopper Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
    3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
    4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
    5. Third-row seat belt lower anchor installation bolt (RH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
    6. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
  3. Disconnect the sliding door open stopper cable.

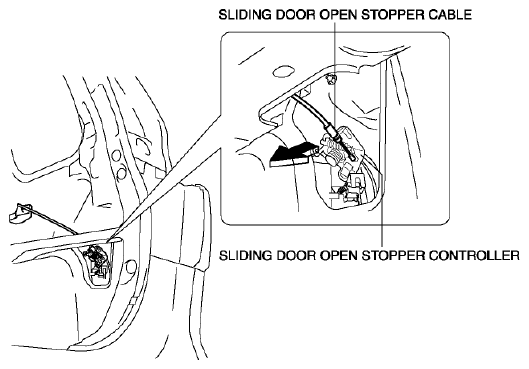

    Fig 1: Disconnecting Sliding Door Open Stopper Cable
    G08152776
  4. Remove the nut A.

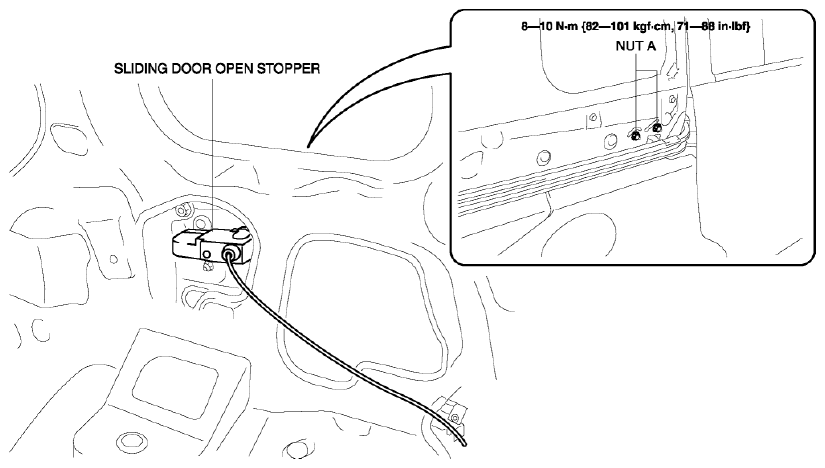

    Fig 2: Sliding Door Open Stopper And Nut A With Torque Specifications
    G08152777
  5. Remove the sliding door open stopper.
  6. Remove the nut B.
    Fig 3: Sliding Door Open Stopper Nut B With Torque Specifications
    G08152778
  7. Remove the sliding door open stopper controller.

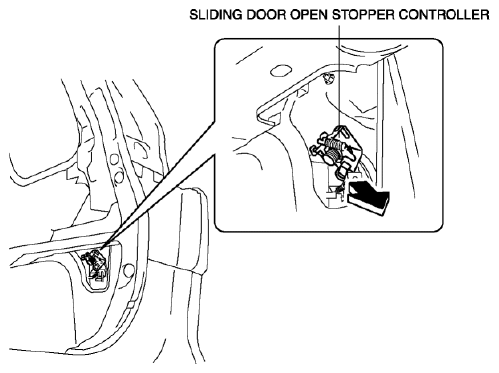

    Fig 4: Removing Sliding Door Open Stopper Controller
    G08152779
  8. Install in the reverse order of removal.
