Front Door Hinge Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION .)
    2. Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION .)
    3. Front fender molding (See COWL GRILLE REMOVAL/INSTALLATION .)
    4. Side step molding (See SIDE STEP MOLDING REMOVAL .) (See SIDE STEP MOLDING INSTALLATION .)
    5. Front fender panel (See FRONT FENDER PANEL REMOVAL/INSTALLATION .)
    6. Front door (See FRONT DOOR REMOVAL/INSTALLATION .)
  3. Remove the bolts.

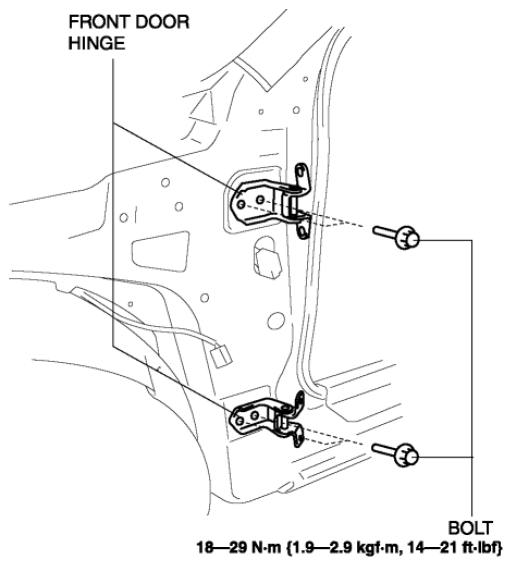

    Fig 1: Front Door Hinge And Bolts With Torque Specifications
    G08152764
  4. Remove the front door hinge.
  5. Install in the reverse order of removal.
