Side Step Molding Removal

  1. Remove the fasteners A.

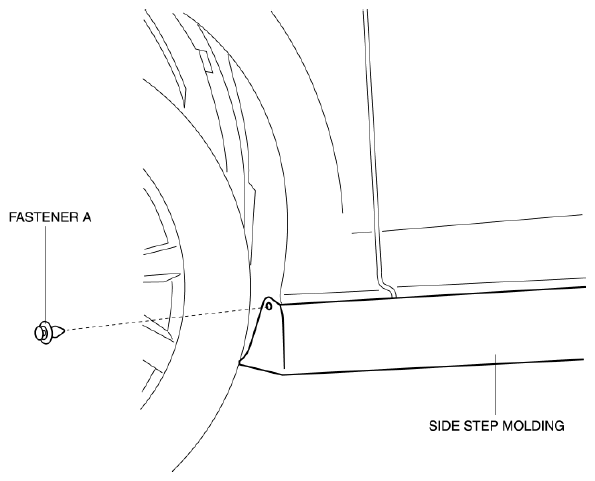

    Fig 1: Identifying Side Step Molding And Fasteners A
    G08153145
  2. Affix the protective tape to the clip B location.
  3. Insert the plastic spatula in the clip B location.

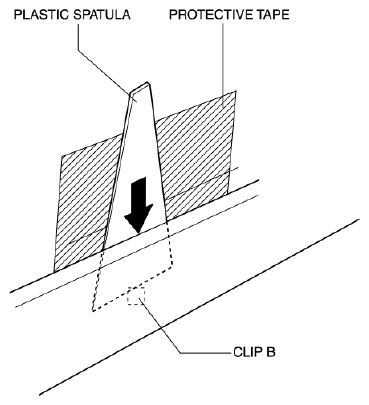

    Fig 2: Inserting Plastic Spatula In Clip B
    G08153146
  4. Insert the removal tool in the clip B location.
  5. Move the removal tool in the direction of arrow shown in the figure and then remove clips B.
    CAUTION:
    • If the end of the side step molding is pulled when removing clip B, the clip B installation area may be damaged. Remove clip B from the vehicle body using a fastener remover.
    NOTE:
    • Leave the disengaged clip B in place in consideration of the servicing.

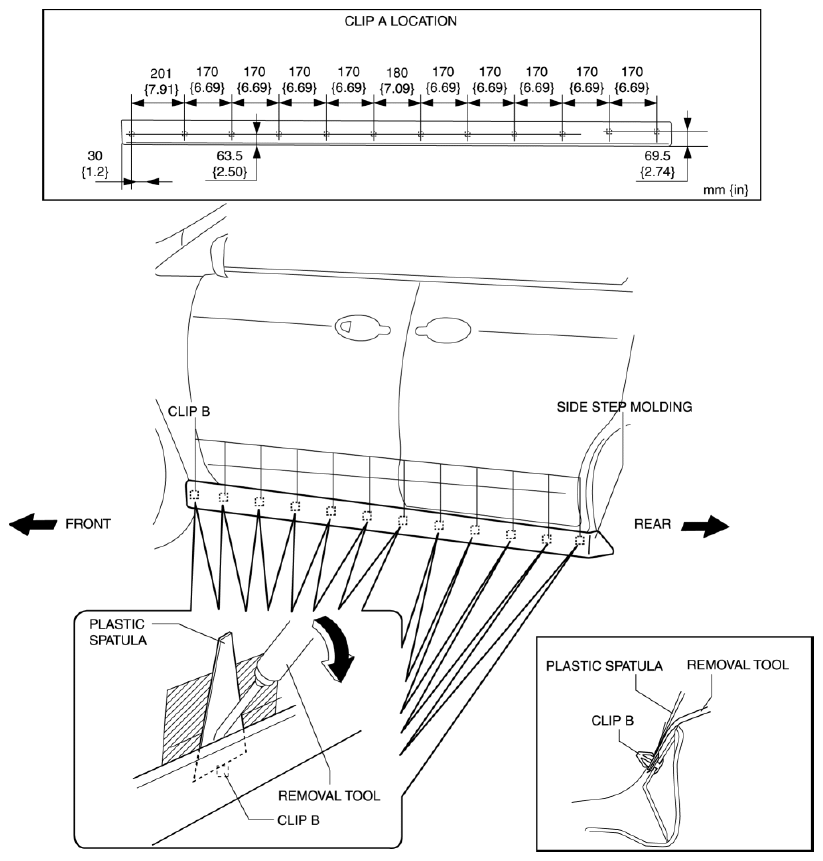

    Fig 3: Side Step Molding Clip B
    G08153147
  6. Slide the side step molding in the direction of the arrow shown in the figure and remove the side step molding from clips C.

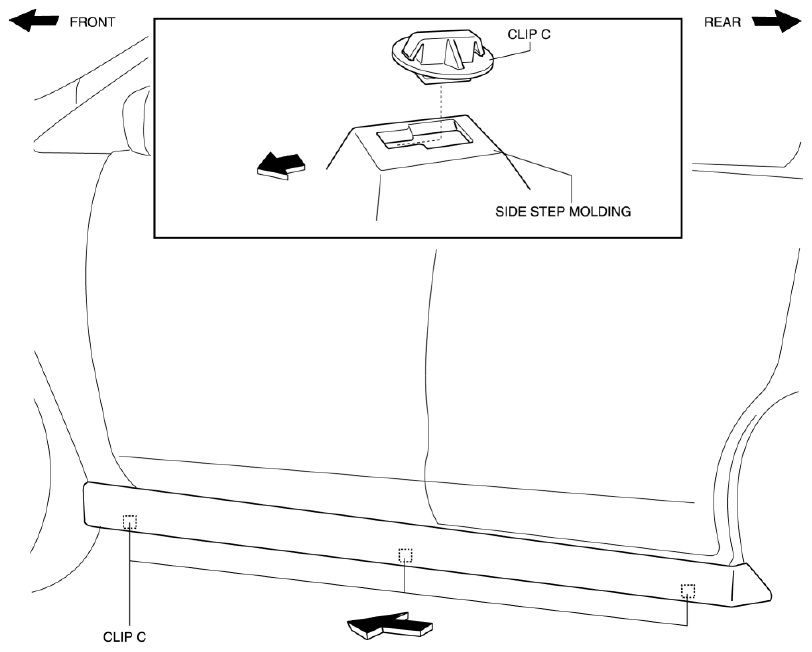

    Fig 4: Sliding Side Step Molding
    G08153148
  7. After removing the side step molding, remove clips C from the body using a fastener remover.
