Side Step Molding Installation

NOTE:

Double-sided adhesive tape has already been adhered to a new side step molding for installation.
When a side step molding is to be reused, perform the following procedure:
- Remove any grease or dirt from the affixing surface of the side step molding.
- Affix double-sided adhesive tape to the position shown in the figure.

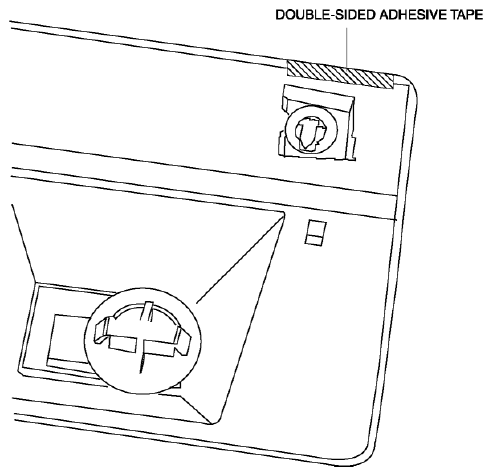

  Fig 1: Applying Double-Sided Adhesive Tape On Side Step Molding

Install the clips B, C and D to the side step molding.

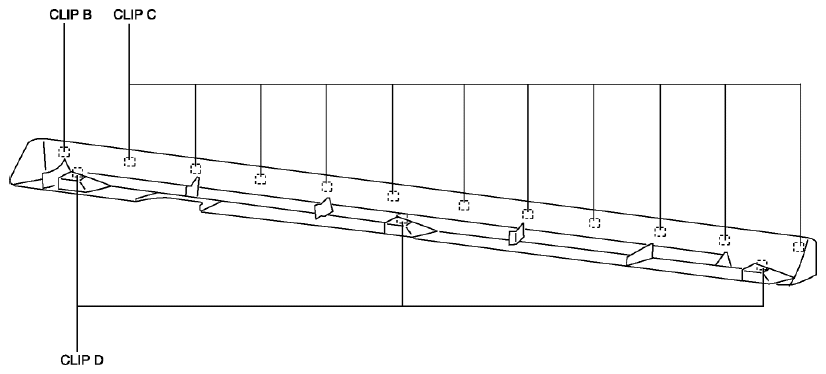

Fig 2: Identifying Clips B, C And D Installation Position On Side Step Molding
Install the side step molding while pushing the clips B, C, and D installation area shown in the figure.

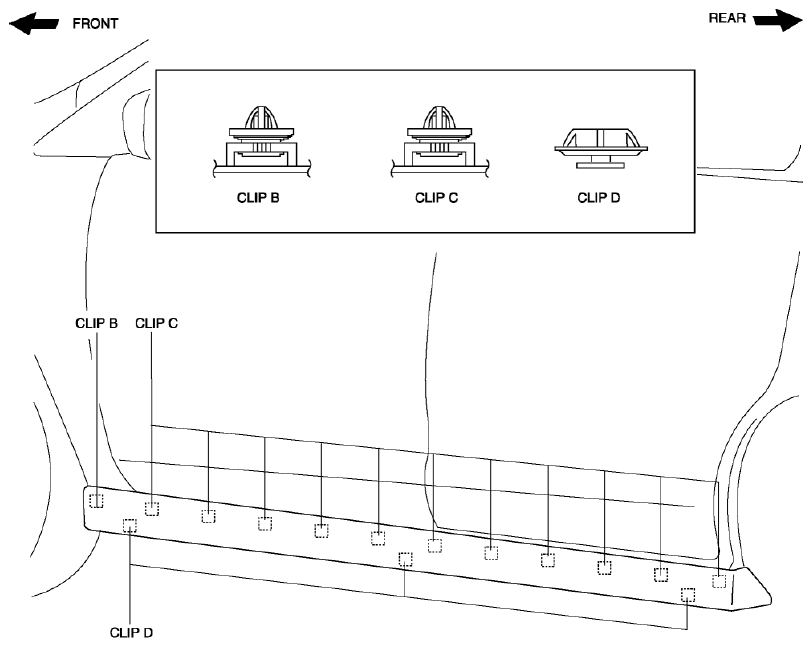

Fig 3: Identifying Side Step Molding Clips B, C, And D Installation Position
Install the fastener A.

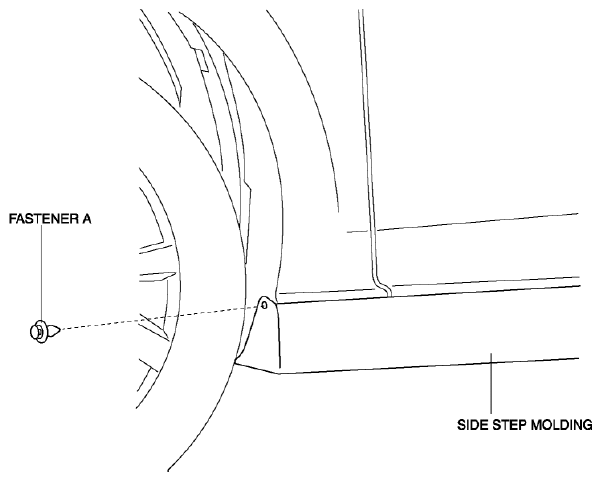

Fig 4: Identifying Side Step Molding And Fastener A
