Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the fastener A.
  3. Pull the front fender molding in the direction of the arrow shown in the figure and remove it while remove the tab B.

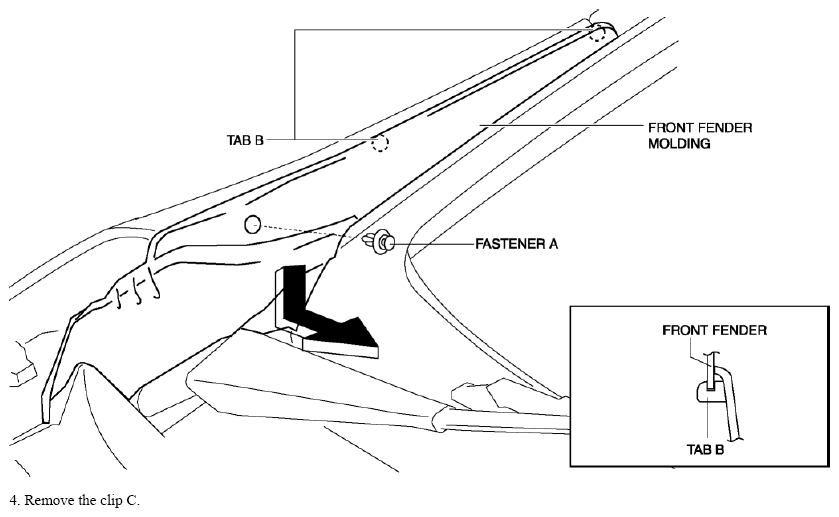

    Fig 1: Pulling Front Fender Molding
    G08153139
  4. Remove the clip C.

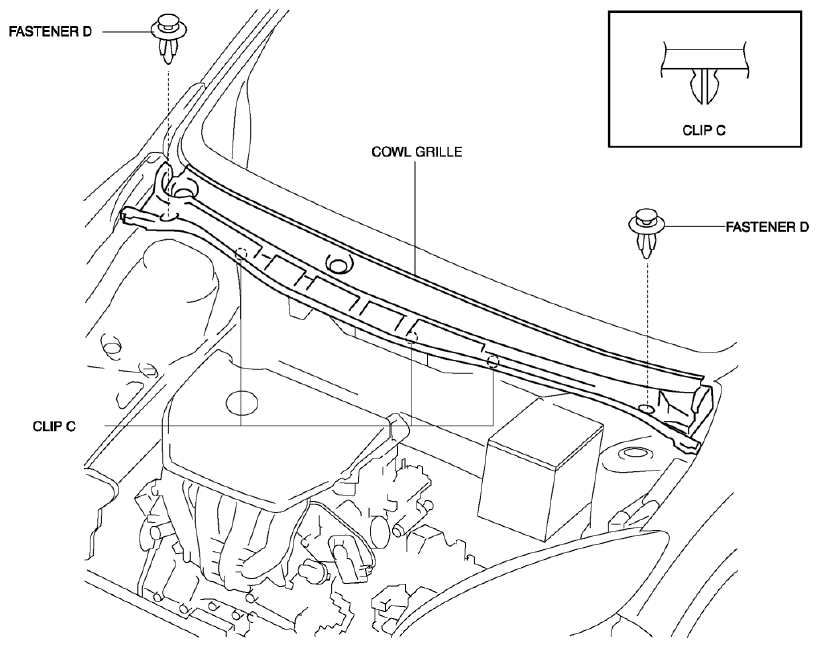

    Fig 2: Identifying Cowl Grille, Fasteners And Clips
    G08153140
  5. Remove the fastener D.
  6. Pull the cowl grille in the direction of arrow, then remove the tabs E from the windshield.

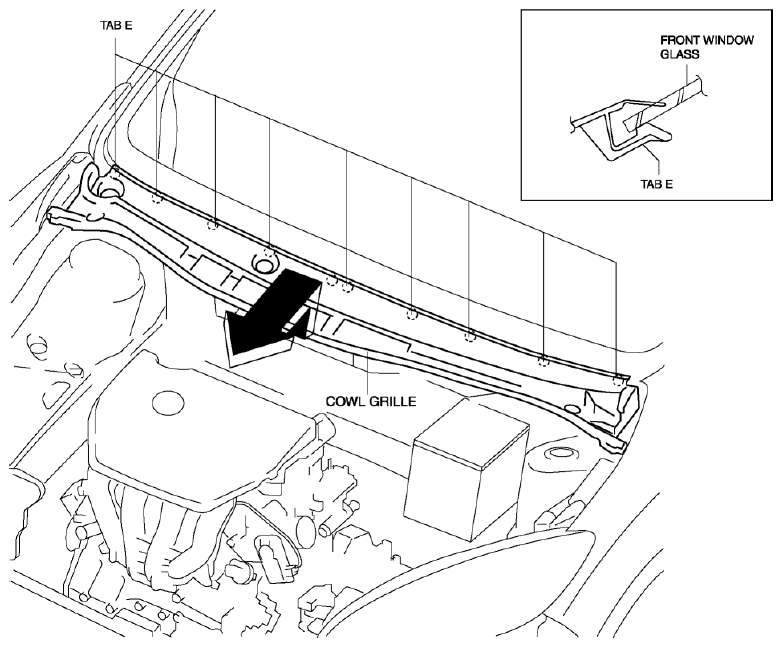

    Fig 3: Pulling Cowl Grille
    G08153141
  7. Remove the cowl grille.
  8. Install in the reverse order of removal.
