Fuel-filler Lid Opener

Open the fuel-filler lid.
Remove the following parts:
1. Rear scuff plate (RH) (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
2. Sub-trunk (See SUB-TRUNK REMOVAL/INSTALLATION .)
3. Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION .)
4. Third-row seat (See THIRD-ROW SEAT REMOVAL/INSTALLATION .)
5. Third-row seat belt lower anchor installation bolt (RH) (See THIRD-ROW SEAT BELT REMOVAL/INSTALLATION .)
6. Trunk side trim (RH) (See TRUNK SIDE TRIM REMOVAL/INSTALLATION .)
Remove the nut.

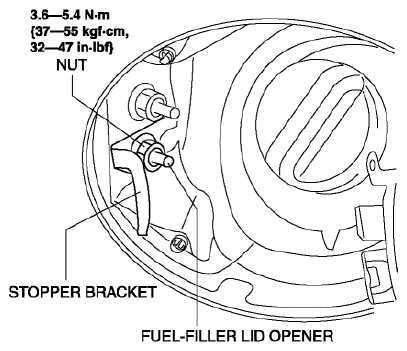

Fig 1: Fuel-Filler Lid Opener, Stopper Bracket And Nut With Torque Specifications
Pull out the fuel-filler lid opener in the direction of the arrow.

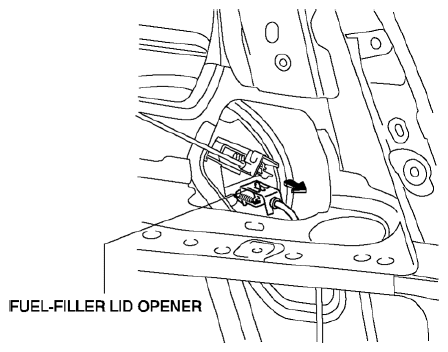

Fig 2: Pulling Out Fuel-Filler Lid Opener
Disconnect the fuel-filler lid opener cable from the fuel-filler lid opener.

Fig 3: Disconnecting Fuel-Filler Lid Opener Cable From Fuel-Filler Lid Opener
Install in the reverse order of removal.
