Front Door Lock Actuator Inspection

  1. To access the glass installation bolt, adjust the position of the front door glass so that the height of the door glass towards the rear is approx. 105 mm {4.13 in}  .

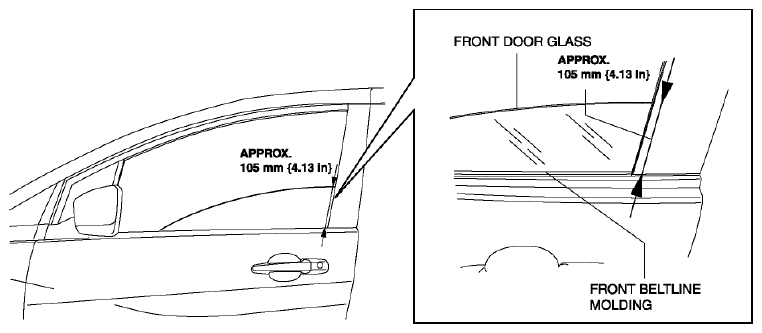

    Fig 1: Height Of Door Glass Measured At Front Beltline Molding
    G08153070
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
    7. Front door latch and lock actuator (See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION .)
  4. Apply battery positive voltage and connect the ground to the front door lock actuator terminals, and then verify that the front door lock actuator operates as indicated in the table.
    Front door lock actuator Terminal Operation
    B+ Ground
    LH D C Lock
    C D Unlock
    RH C D Lock
    D C Unlock

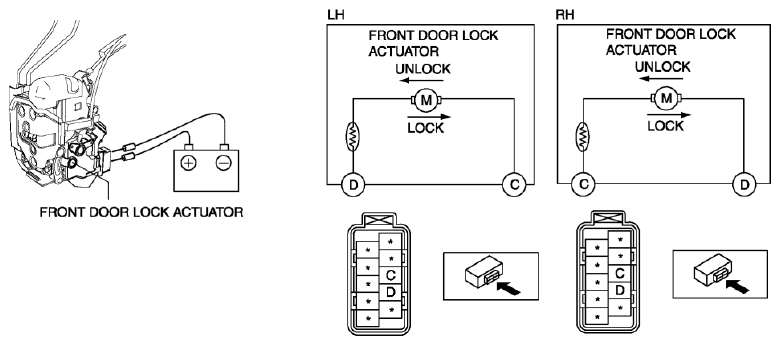

    Fig 2: Applying Voltage And Connect Ground To Front Door Lock Actuator Terminals
    G08153071
    • If not as indicated in the table, replace the front door latch and lock actuator.
