Front Door Latch And Lock Actuator Removal/Installation

  1. To access the glass installation bolt, adjust the position of the front door glass so that the height of the door glass towards the rear is approx. 105 mm {4.13 in}  .

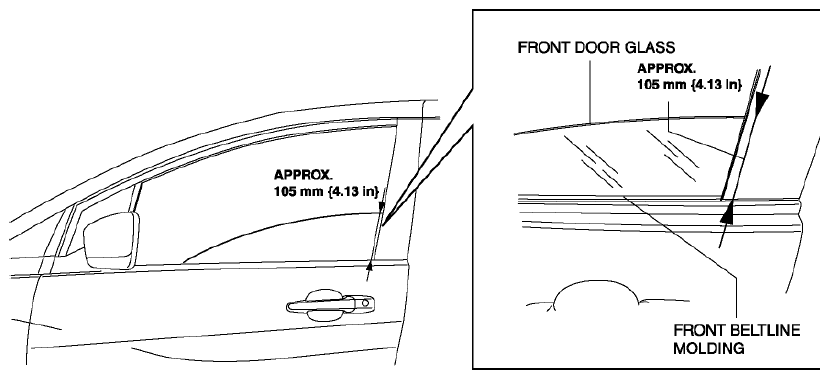

    Fig 1: Identifying Front Door Glass Height Of Door Glass Towards Rear
    G08153063
  2. Disconnect the negative battery cable.
  3. Remove the following parts:
    1. Inner garnish (See INNER GARNISH REMOVAL/INSTALLATION .)
    2. Front door trim (See FRONT DOOR TRIM REMOVAL/INSTALLATION .)
    3. Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .)
    4. Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION .)
    5. Front inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    6. Front door module panel (See FRONT DOOR MODULE PANEL REMOVAL/INSTALLATION .)
  4. Disconnect the rod from the front outer handle.
  5. Disconnect the rod from the front door key cylinder.
  6. Remove the service hole cover.
    Fig 2: Identifying Service Hole Cover
    G08153064
  7. Remove the bolt.

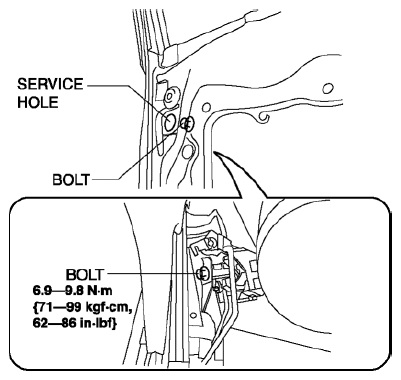

    Fig 3: Service Hole And Bolt With Torque Specifications
    G08153065
  8. Remove the screws.

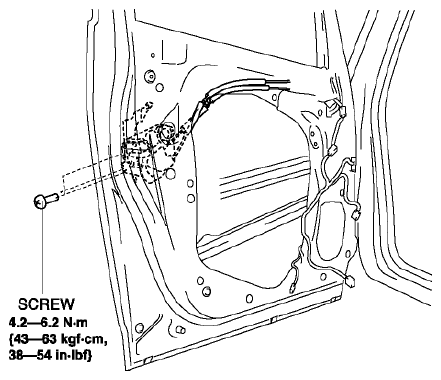

    Fig 4: Front Door Latch And Lock Actuator Screws With Torque Specifications
    G08153066
  9. Remove the front door latch and lock actuator.

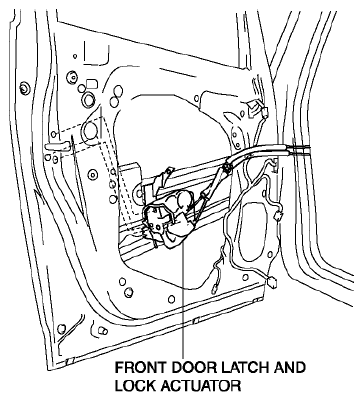

    Fig 5: Identifying Front Door Latch And Lock Actuator
    G08153067
  10. Install in the reverse order of removal.
