Power Steering Oil Pump Removal/Installation [MZI 3.7 V6]

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  2. Remove the cowl grill. (See COWL GRILLE REMOVAL/INSTALLATION .)
  3. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .)
  4. Remove the power steering fluid reservoir from the tank bracket and then remove the tank bracket from the cowl panel as shown in the figure.

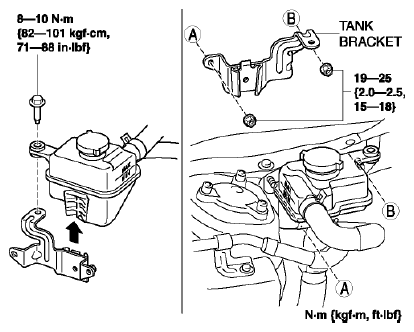

    Fig 1: Power Steering Fluid Reservoir Tank And Bracket With Torque Specifications
    G08143501
  5. Remove the cowl panel. (See COWL PANEL REMOVAL/INSTALLATION .)
  6. Set the front mudguard (RH) out of the way. (See FRONT MUDGUARD REMOVAL/INSTALLATION .)
  7. Remove the splash shield (RH).
  8. Set the power steering oil pump drive belt out of the way. (See DRIVE BELT REMOVAL/INSTALLATION [MZI 3.7 V6] .)
  9. Remove in the order indicated in the table.
  10. Install in the reverse order of removal.

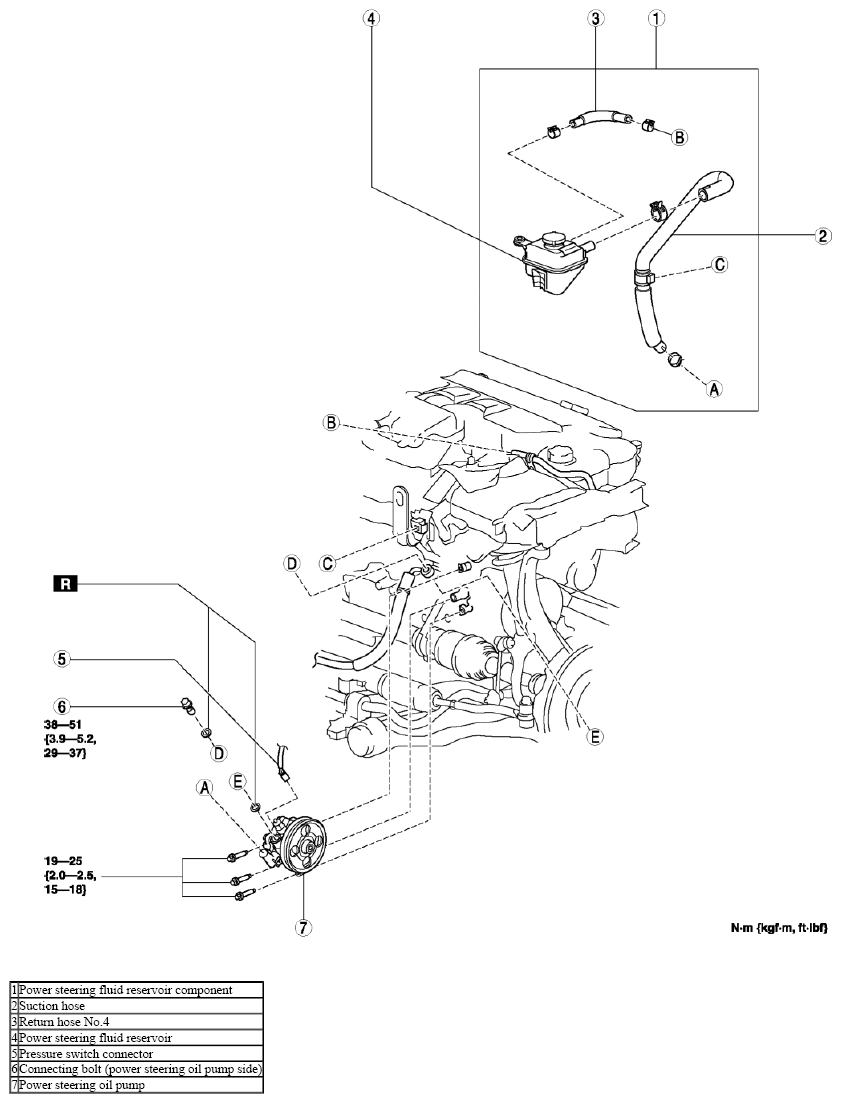

    Fig 2: Power Steering Oil Pump Replacement Components With Torque Specifications
    G08143502
