Front Mudguard Removal/Installation

  1. Remove screws A and tab B, and set the front mudguard out of the way in the direction of the arrow shown in the figure.

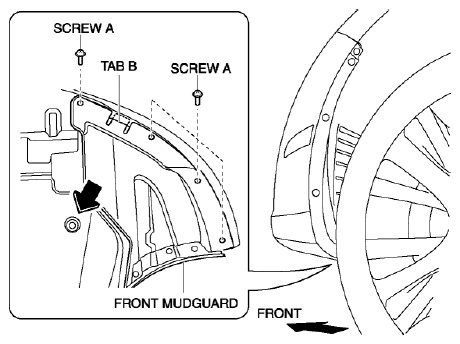

    Fig 1: Front Mudguard Screws And Tab
    G08144681
  2. Remove fasteners C, E, F and screws D.

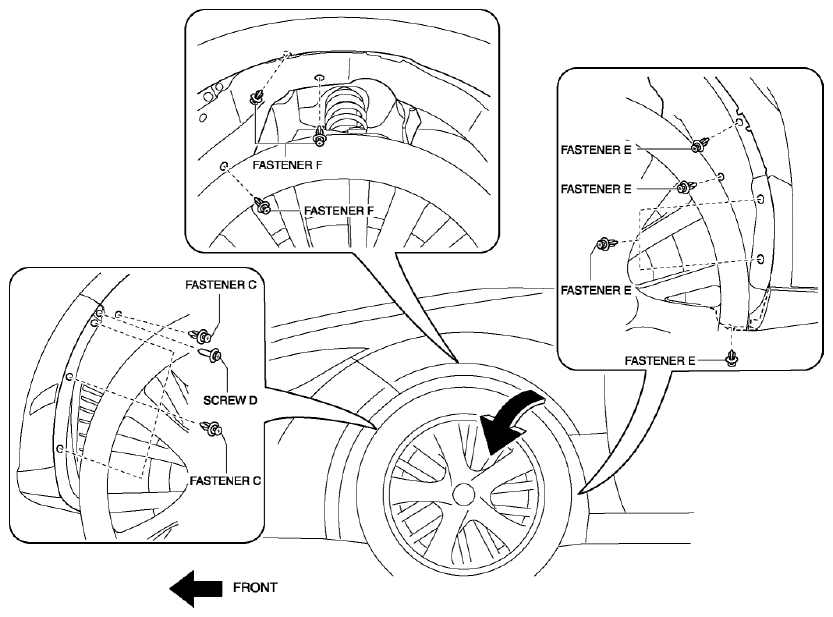

    Fig 2: Front Mudguard Fasteners And Screws
    G08144682
  3. Remove the front mudguard in the direction of the arrow shown in the figure.
  4. Install in the reverse order of removal.
