Cowl Grille Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION )
  2. Remove the fastener A.

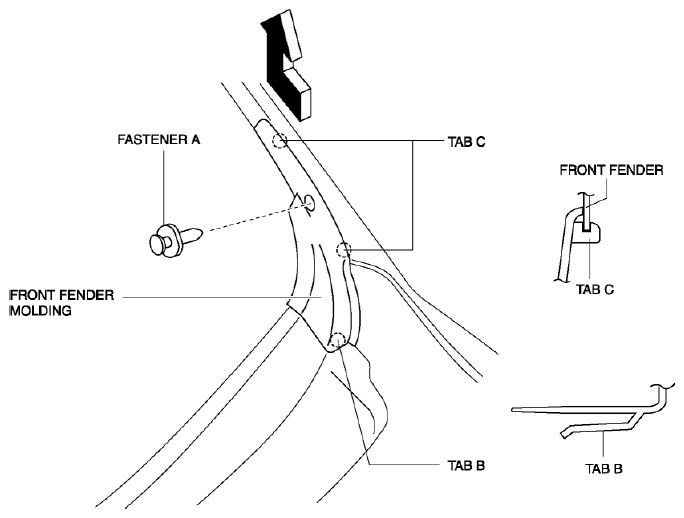

    Fig 1: Pulling Front Fender Molding And Tabs
    G08144662
  3. Pull the front fender molding in the direction of the arrow shown in the figure and remove it while remove the tab B and tab C.
  4. Disconnect the windshield washer hose from the joint pipe A. (See WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION )
  5. Remove the fasteners D.

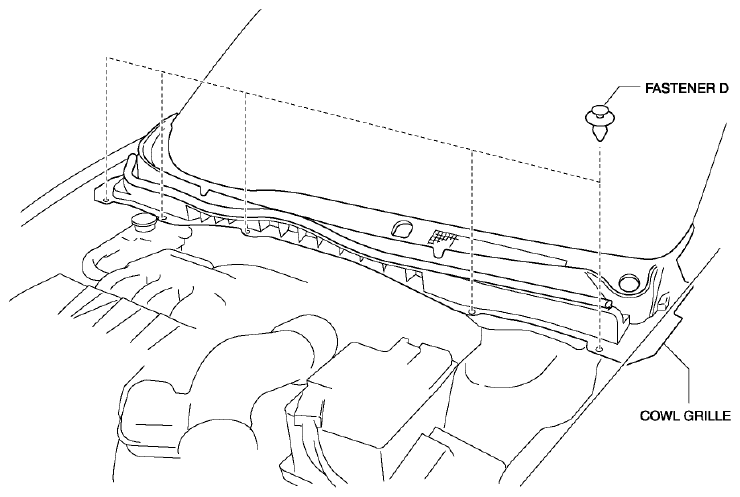

    Fig 2: Identifying Cowl Grille And Fasteners
    G08144663
  6. Pull the cowl grille in the direction of arrow (1) so that it is free from the pins E, pull tabs F in the direction of arrow (2).

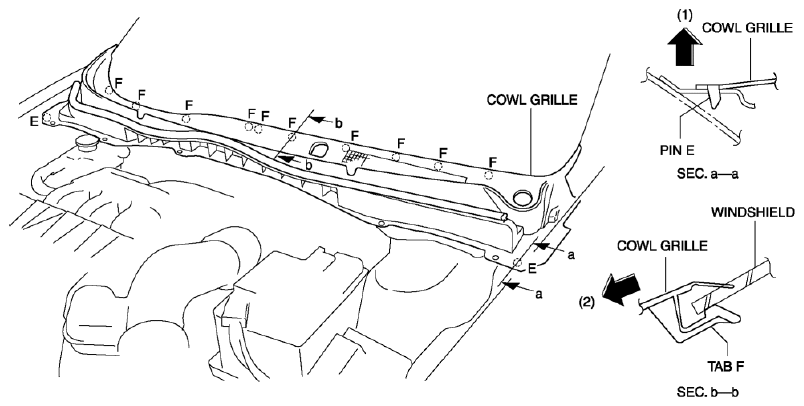

    Fig 3: Pulling Cowl Grille From Pins
    G08144664
  7. Remove the cowl grille.
  8. Install in the reverse order of removal.
