Windshield Wiper Motor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION .)
  4. Remove the cover, and remove the bolt.

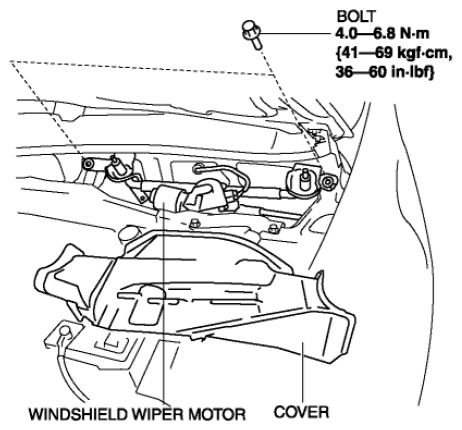

    Fig 1: Windshield Wiper Motor Cover And Bolts With Torque Specification
    G08144902
  5. Remove the windshield wiper motor.
  6. Install in the reverse order of removal.
