Rear Door Hinge Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the following parts:
    1. Rear door. See REAR DOOR REMOVAL/INSTALLATION .
    2. Front scuff plate. See FRONT SCUFF PLATE REMOVAL/INSTALLATION .
    3. Rear scuff plate. See REAR SCUFF PLATE REMOVAL/INSTALLATION .
    4. B-pillar lower trim. See B-PILLAR LOWER TRIM REMOVAL/INSTALLATION .
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal.

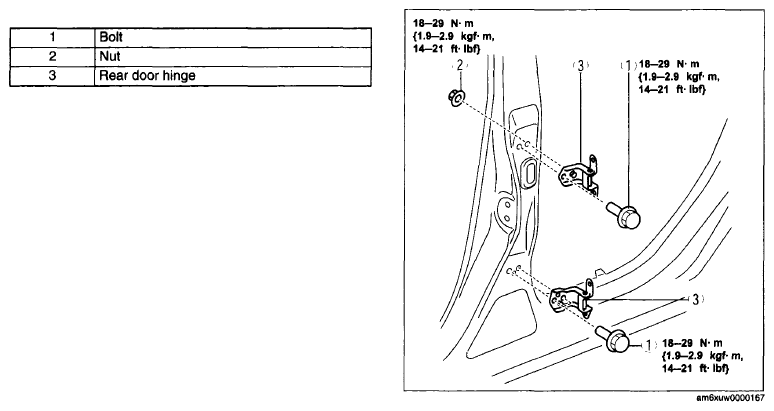

Fig 1: Rear Door Hinge With Mounting Bolts And Nuts Torque Specifications
G06205700Courtesy of MAZDA MOTORS CORP.
