Front Mudguard Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Remove screws A and tab B, and set the front mudguard out of the way in the direction of the arrow shown in the figure.

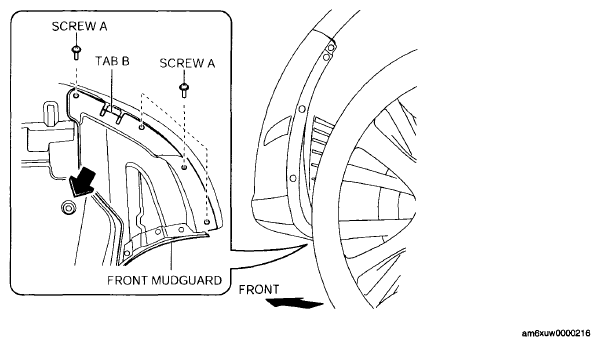

Fig 1: Locating Front Mudguard
Courtesy of MAZDA MOTORS CORP.
Remove fasteners C, E, F and screws D

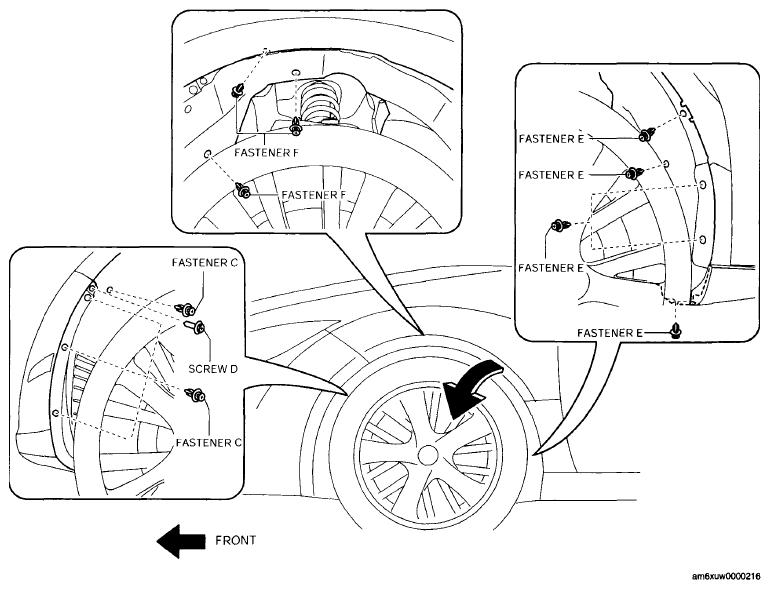

Fig 2: Identifying Fasteners C, E, F And Screws D
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
