Power Steering Oil Pump Removal/Installation [L5]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Set the front mudguard (RH) out of the way. See FRONT MUDGUARD REMOVAL/INSTALLATION .
Remove the splash shield (RH).
Remove the aerodynamic under cover No. 2. See AERODYNAMIC UNDER COVER NO. 2 REMOVAL/INSTALLATION .
Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION [L5] .
Remove in the order indicated in the table.
Install in the reverse order of removal.

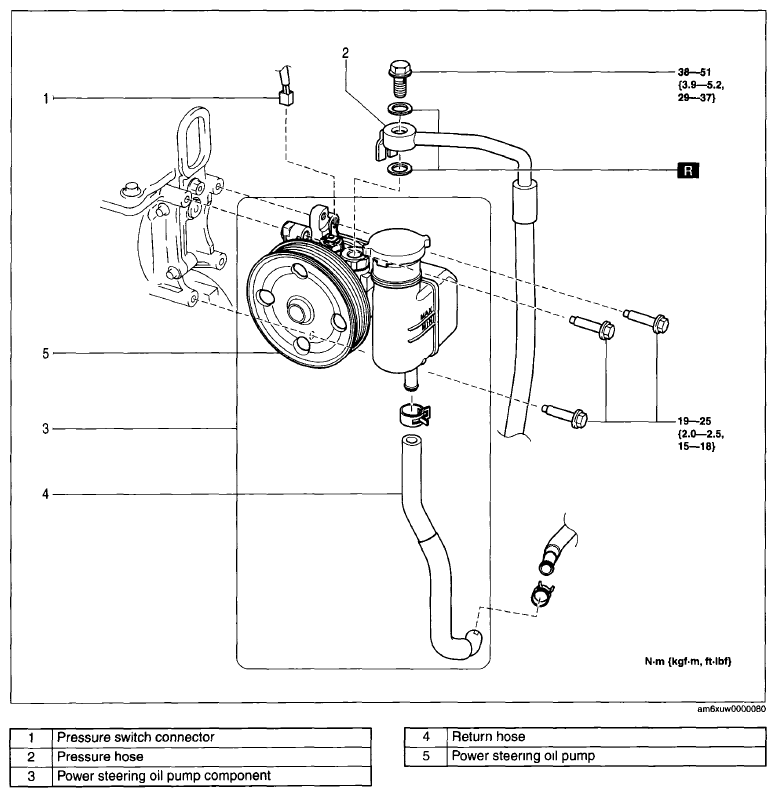

Fig 1: Identifying Power Steering Oil Pump Components
Courtesy of MAZDA MOTORS CORP.
