Aerodynamic Under Cover No. 2 Removal/Installation
WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
- Lift up the vehicle.
- Remove the bolts.

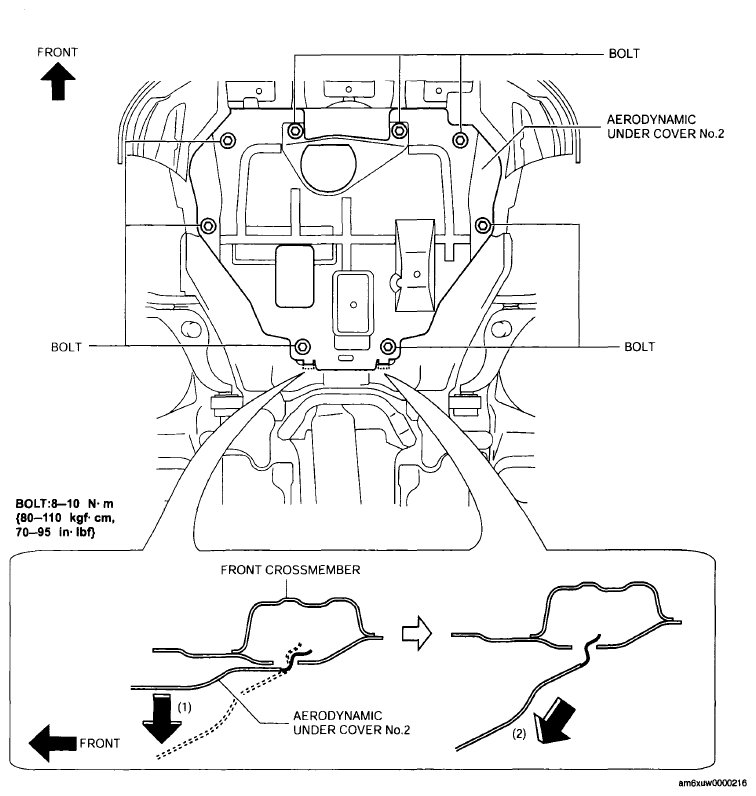

- Move the aerodynamic under cover No. 2 in the direction of the arrow (1) shown in the figure.CAUTION:
- Be careful not to damage the aerodynamic under cover No. 2 during removal.
- Remove the aerodynamic under cover No. 2 in the direction of the arrow (2) shown in the figure.
- Install in the reverse order of removal.
