Pressure Hose Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the bolt shown in the figure, and position the power steering fluid reservoir out of the way.
  2. Remove the windshield wiper arm. See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .
  3. Remove the cowl grille. See COWL GRILLE REMOVAL/INSTALLATION .
  4. Remove the windshield wiper motor. See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION .
  5. Remove the cowl panel. See COWL PANEL REMOVAL/INSTALLATION .
  6. Remove in the order indicated in the table.
  7. Install in the reverse order of removal.
    Fig 1: Power Steering Fluid Reservoir Bolt With Torque Specifications
    G06200291Courtesy of MAZDA MOTORS CORP.

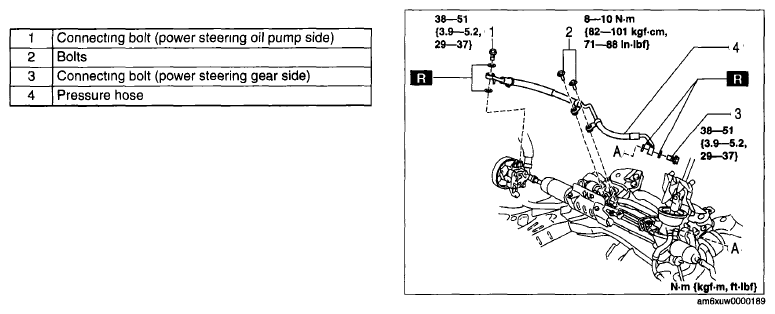

    Fig 2: Pressure Hose Replacement Components With Torque Specifications
    G06200292Courtesy of MAZDA MOTORS CORP.
