Windshield Wiper Motor Removal/Installation

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the windshield wiper arm and blade. See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .
  3. Remove the cowl grille. See COWL GRILLE REMOVAL/INSTALLATION .
  4. Remove the cover, and remove the bolt.
  5. Remove the windshield wiper motor.
  6. Install in the reverse order of removal.

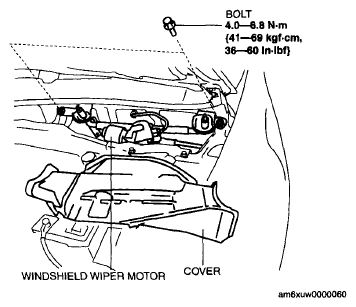

    Fig 1: Windshield Wiper Motor, Cover And Bolt With Torque Specifications
    G06199535Courtesy of MAZDA MOTORS CORP.
