Engine Disassembly/Assembly [MZI-3.7]: Notes

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the transaxle from the engine. (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION [AW6A-EL] .)
  2. Remove the drive plate. (See DRIVE PLATE REMOVAL/INSTALLATION [AW6A-EL] .)
  3. Remove the ignition coils. (See IGNITION COIL REMOVAL/INSTALLATION [MZI-3.7] .)
  4. Remove the CMP sensor (See CAMSHAFT POSITION (CMP) SENSOR REMOVAL/INSTALLATION [MZI-3.7] .)
  5. Remove the power steering oil pump. (See POWER STEERING OIL PUMP REMOVAL/INSTALLATION [MZI-3.7] .)
  6. Remove the generator. (See GENERATOR REMOVAL/INSTALLATION [MZI-3.7] .)
  7. Remove the fuel injector and fuel distributor. (See FUEL INJECTOR REMOVAL/INSTALLATION [MZI-3.7] .)
  8. Remove the intake-air system (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)
  9. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .)
  10. Remove the thermostat case and water hose component. (See THERMOSTAT REMOVAL/INSTALLATION [MZI-3.7] .)
  11. Remove the CHT sensor. (See CYLINDER HEAD TEMPERATURE (CHT) SENSOR REMOVAL/INSTALLATION [MZI-3.7] .)
  12. Remove the CKP sensor. (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [MZI-3.7] .)
  13. Remove the oil pressure switch. (See OIL PRESSURE INSPECTION [MZI-3.7] .)
  14. Disassemble in the order indicated in the table.
  15. Assemble in the reverse order of disassembly.

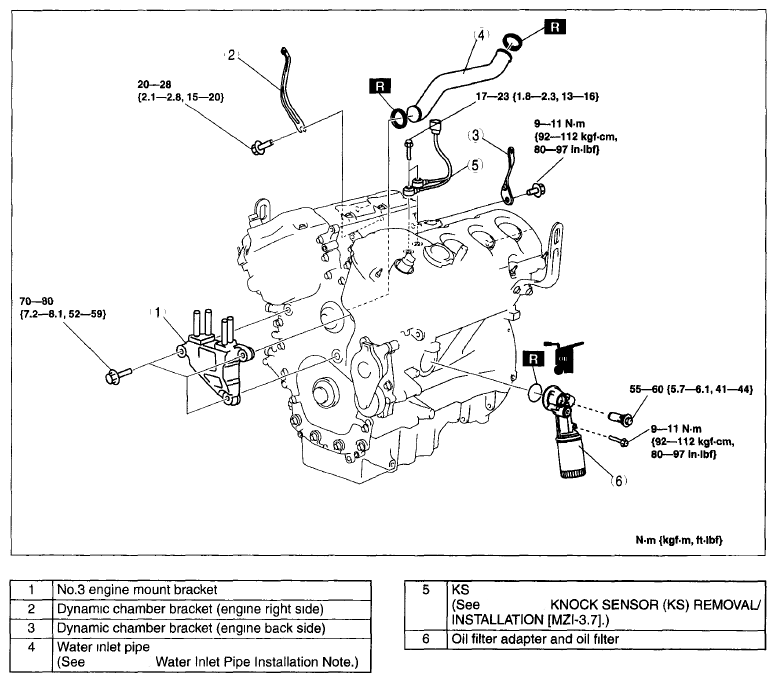

    Fig 1: Engine Replacement Components With Torque Specifications
    G06199366Courtesy of MAZDA MOTORS CORP.
