Camshaft Position (CMP) Sensor Removal/Installation [MZI-3.7]

WARNING: This page is about a different car, the 2009 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove the following part for easier access.
- Remove the resonance chamber and air cleaner assy. See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [MZI-3.7] .
Disconnect the CMP sensor connector
Remove the CMP sensor.

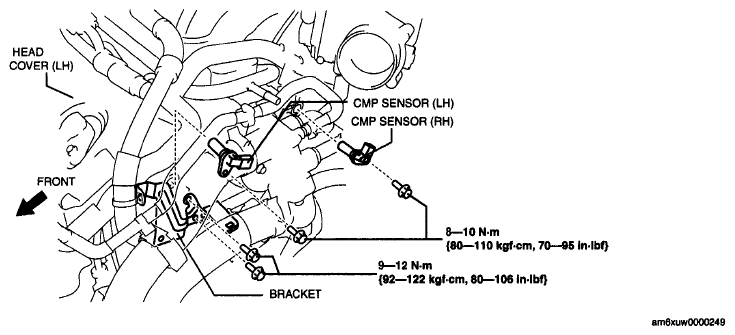

Fig 1: Camshaft Position Sensor And Bolts With Torque Specifications
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Lubricate the CMP O-ring seal with clean engine oil.
Install in the reverse order of removal.
