Intake-Air System Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
WARNING:
- A hot engine and intake air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake air system.
- Fuel line spills and leakage from the pressurized fuel system are dangerous. Fuel can ignite and cause serious injury or death and damage. Fuel can also irritate skin and eyes. To prevent this, always complete the "Fuel Line Safety Procedure".
CAUTION:
- Parts for engines manufactured in Mexico and Hiroshima cannot be used interchangeably as the engine will not operate correctly resulting in a serious malfunction. To prevent this, when replacing parts refer to the 'VEHICLE IDENTIFICATION NUMBER (VIN) CODE' table below and verify the engine's place of manufacture before performing the servicing. (See VEHICLE IDENTIFICATION NUMBER (VIN) CODE .)
- Complete the "BEFORE SERVICE PRECAUTION". (See BEFORE SERVICE PRECAUTION .)
- Disconnect the negative battery cable. (See BATTERY REMOVAL/INSTALLATION [MZR 2.5] .)
- Disconnect the wiring harness.
- Remove in the order indicated in the table.
- Install in the reverse order of removal
- Add the engine coolant to the cooling system filler neck and the coolant reserve tank to replace that during servicing.
- Inspect the engine coolant level. (See ENGINE COOLANT LEVEL INSPECTION .)
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION .)
- Complete the "AFTER SERVICE PRECAUTION". (See AFTER SERVICE PRECAUTION .)

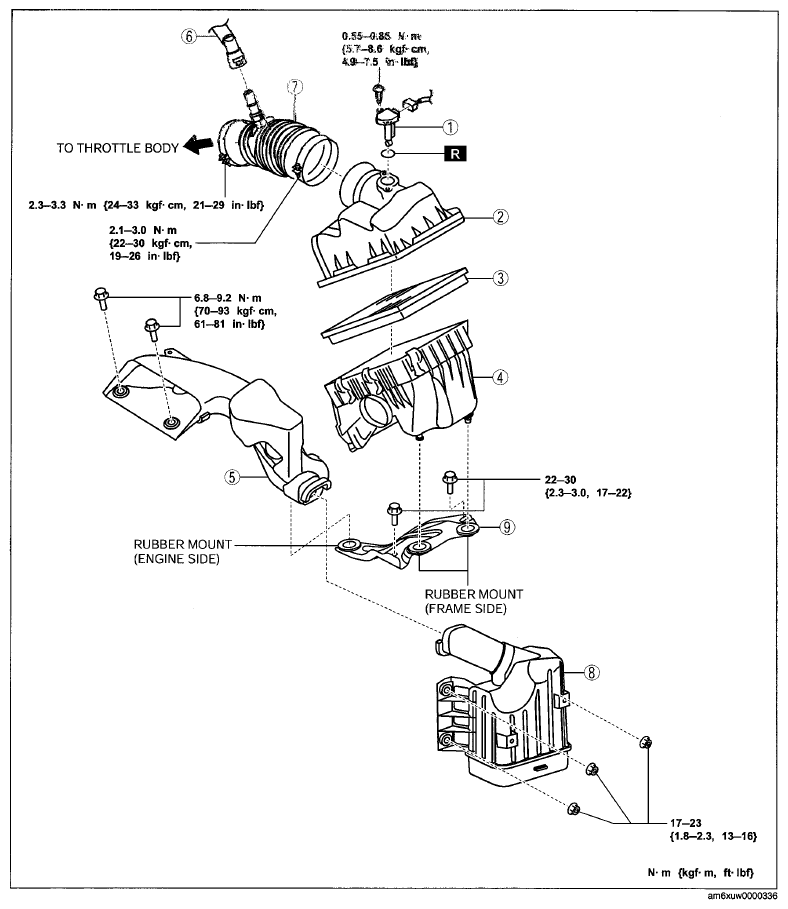

Step 1
INTAKE-AIR SYSTEM COMPONENTS REFERENCE CHART
| 1 | MAF/IAT sensor |
| 2 | Air cleaner cover |
| 3 | Air cleaner element |
| 4 | Air cleaner case (See AIR CLEANER CASE INSTALLATION NOTE .) |
| 5 | Fresh-air duct (See FRESH-AIR DUCT INSTALLATION NOTE .) |
| 6 | Ventilation hose (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 7 | Air hose |
| 8 | Resonance chamber (See RESONANCE CHAMBER REMOVAL NOTE .) |
| 9 | Air cleaner bracket |

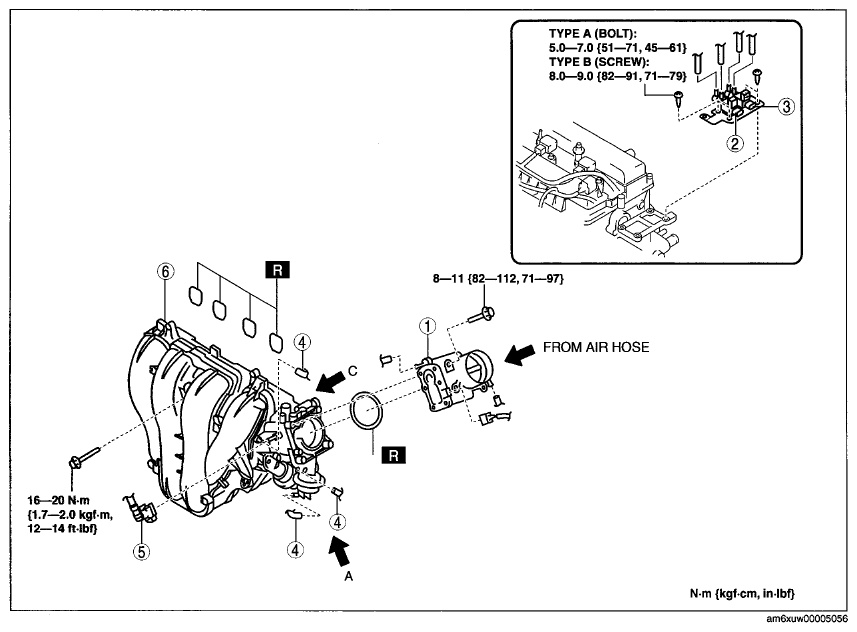

Step 2
INTAKE-AIR SYSTEM COMPONENTS REFERENCE CHART
| 1 | Throttle body (See THROTTLE BODY REMOVAL NOTE .) (See THROTTLE BODY INSTALLATION NOTE .) |
| 2 | Variable intake air solenoid valve |
| 3 | Variable tumble solenoid valve |
| 4 | Vacuum hose (See INTAKE MANIFOLD REMOVAL NOTE .) (See VACUUM HOSE INSTALLATION NOTE .) |
| 5 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 6 | Intake manifold (See INTAKE MANIFOLD REMOVAL NOTE .) |
