Section 6 (Engine Mechanical [Intake-Air System MZR 2.5])
>>
Intake-Air System Removal/Installation
>>
Vacuum Hose Installation Note
Vacuum Hose Installation Note
WARNING:
This page is about a different variant/trim than selected.
Install the vacuum hose shown in the figure.

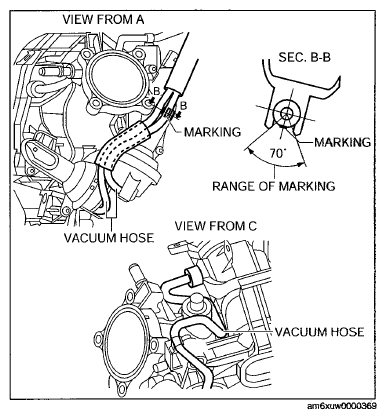

Fig 1: Vacuum Hose
Courtesy of MAZDA MOTORS CORP.
