Cowl Panel Removal/Installation

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION. )
  2. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION [EXCEPT L3 WITH TC]. )

    (See COWL GRILLE REMOVAL/INSTALLATION [L3 WITH TC]. )

  3. Remove the windshield wiper motor. (See WINDSHIELD WIPER MOTOR REMOVAL/INSTALLATION. )
  4. Remove in the order indicated in the table.
  5. Install in the reverse order of removal.

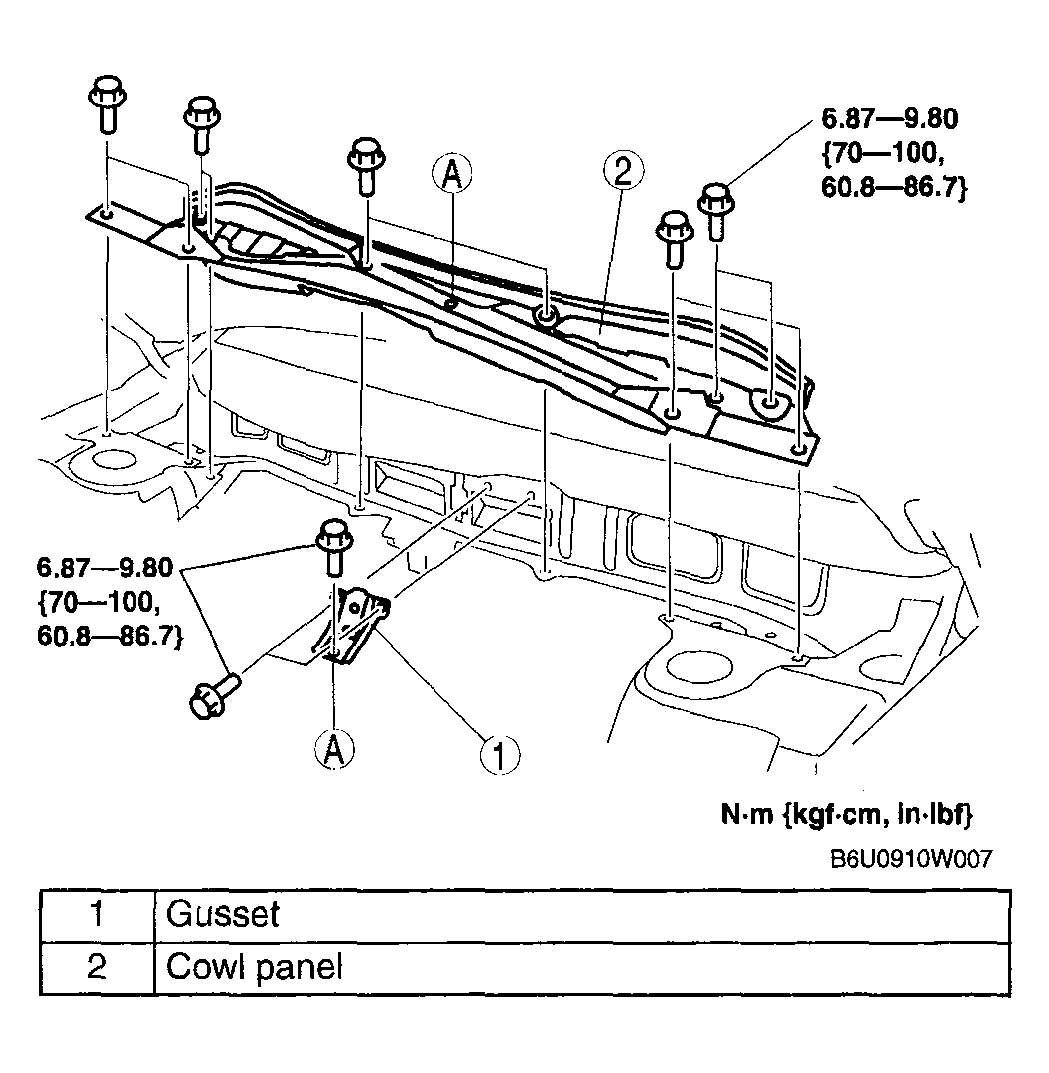

    Fig 1: Cowl Panel & Torque Specification
    G04327151Courtesy of MAZDA MOTORS CORP.
