Windshield Wiper Motor Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION ).
  3. Remove the cowl grille. (See COWL GRILLE REMOVAL/INSTALLATION [EXCEPT L3 WITH TC]. ) (See COWL GRILLE REMOVAL/INSTALLATION [L3 WITH TC]. )
  4. Remove in the order indicated in the table.

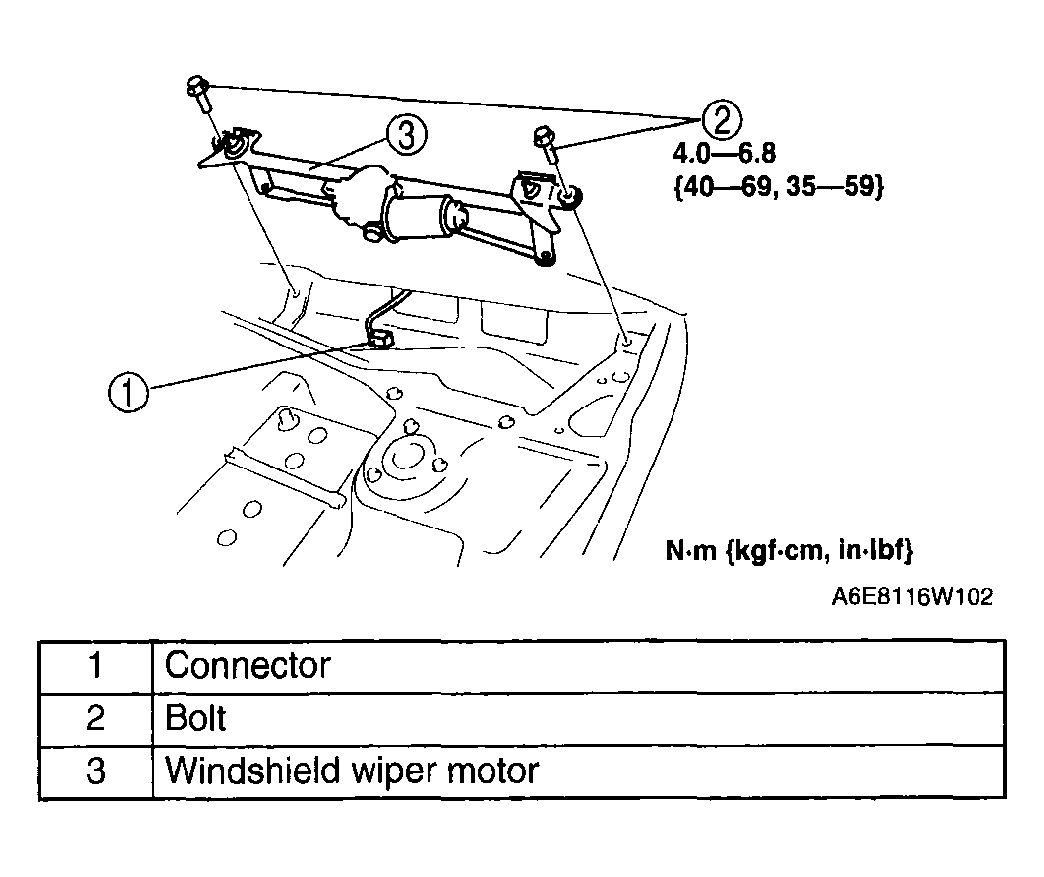

    Fig 1: Windshield Wiper Motor & Torque Specification
    G04327603Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
  6. Adjust the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE ADJUSTMENT ).
