Cowl Grille Removal/Installation [Except L3 With TC]

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION. )
  2. Remove in the order indicated in the table.

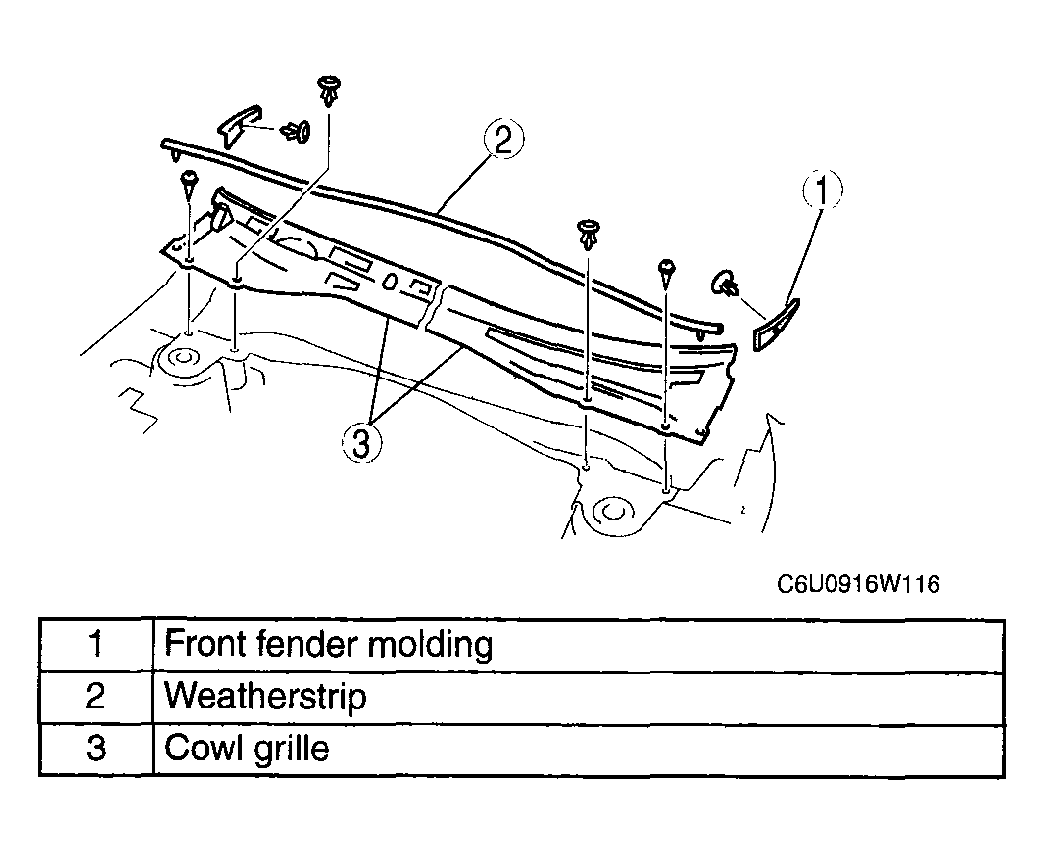

    Fig 1: Removing & Installing Cowl Grille (Except L3 With TC)
    G04327414Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
