Cowl Grille Removal/Installation [L3 With TC]

  1. Remove the windshield wiper arm and blade. (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION. )
  2. Remove in the order indicated in the table.

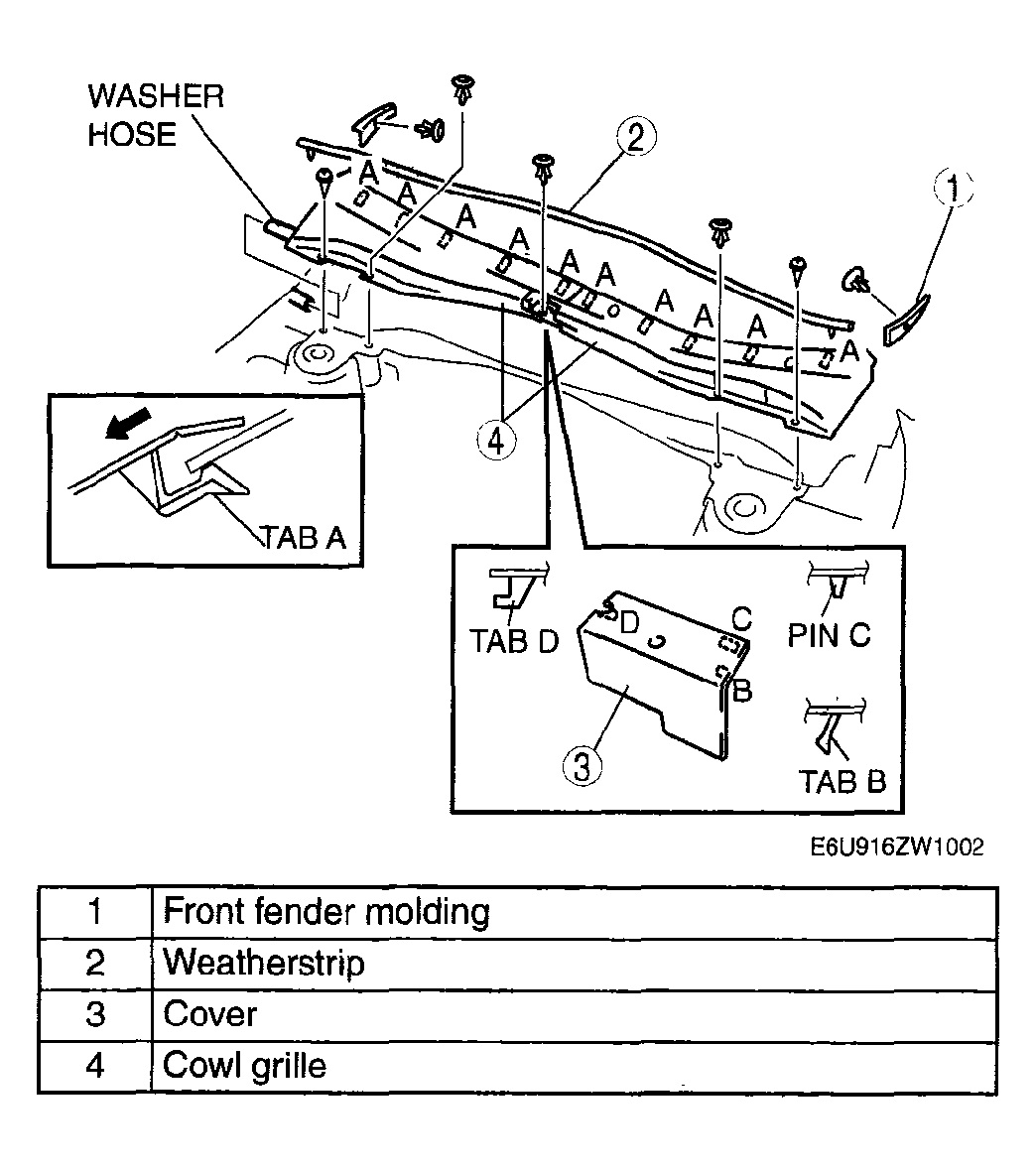

    Fig 1: Removing & Installing Cowl Grille (L3 With TC)
    G04327413Courtesy of MAZDA MOTORS CORP.
  3. Remove the washer nozzle. (See WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION [L3 WITH TC]. )
  4. Install in the reverse order of removal.
