Windshield Wiper Arm And Blade Adjustment

  1. Operate the windshield wiper motor to set the wipers in the park position.
  2. Set the windshield wiper arm heights as shown.

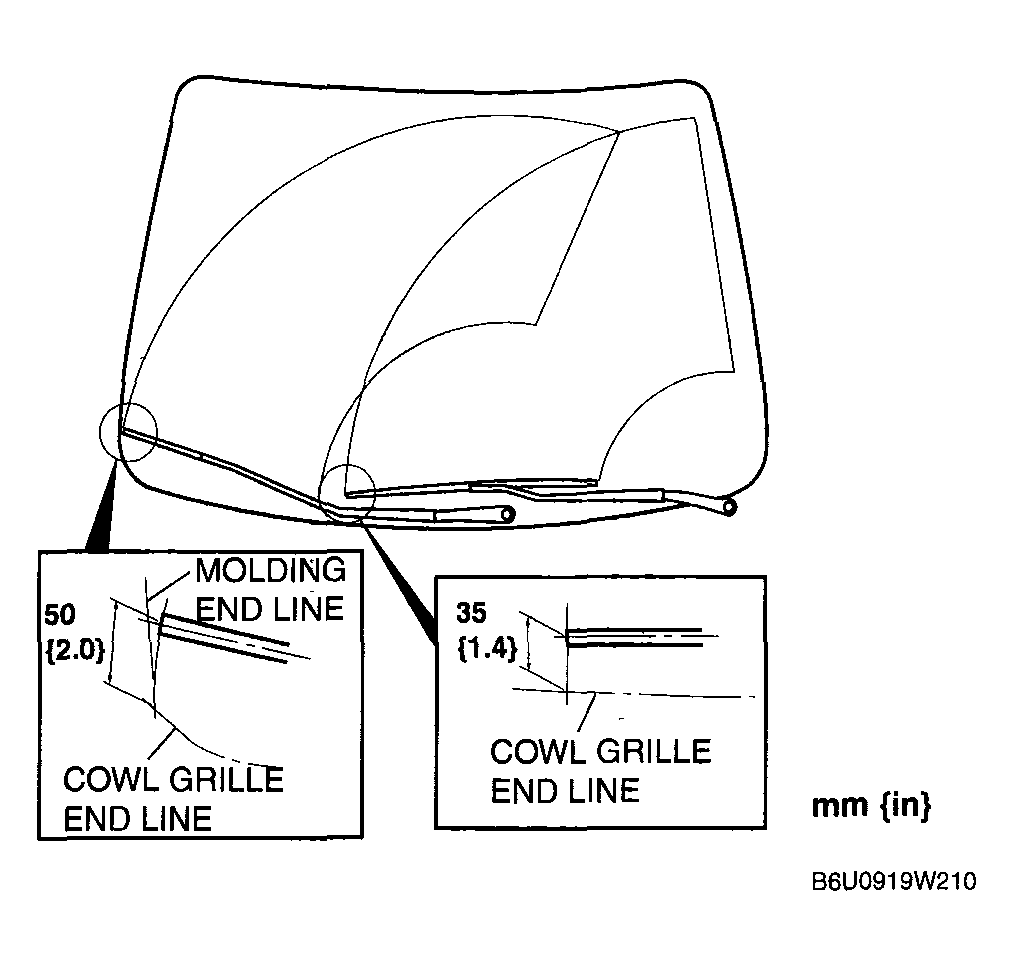

    Fig 1: Adjusting Windshield Wiper Arm Heights
    G04327600Courtesy of MAZDA MOTORS CORP.
