Crankshaft Front Oil Seal Replacement - 3.0L: Notes

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the air cleaner outlet tube. See AIR CLEANER OUTLET TUBE REMOVAL/INSTALLATION - 3.0L .
  3. Remove the cooling fan blade and fan shroud. See COOLING FAN AND CLUTCH REMOVAL/INSTALLATION - 3.0L .
  4. Remove the drive belt. See DRIVE BELT REMOVAL/INSTALLATION - 3.0L .
  5. Remove the crankshaft pulley.
    Fig 1: Removing Crankshaft Pulley
    G03728430Courtesy of MAZDA MOTORS CORP.
  6. Remove the vibration damper bolt and the washer.

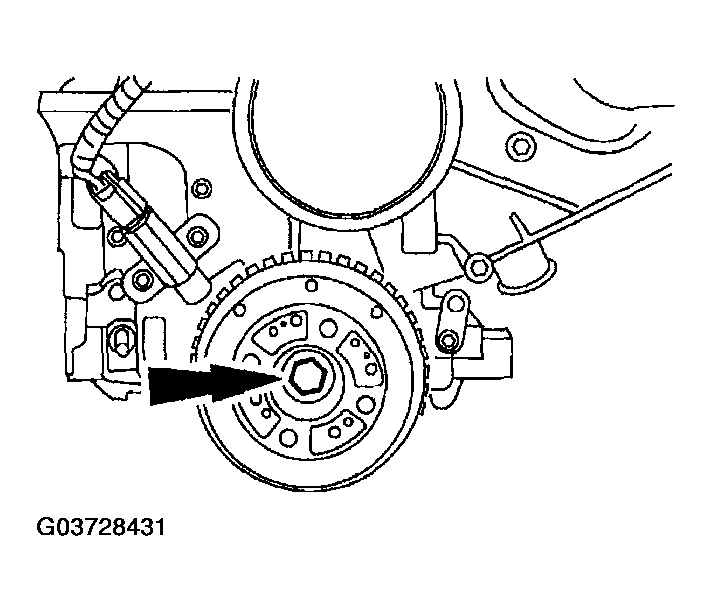

    Fig 2: Removing Vibration Damper Bolt And Washer
    G03728431Courtesy of MAZDA MOTORS CORP.
  7. Remove the crankshaft damper, using Crankshaft Damper Remover ST  303-009 (T58P-6316-D) or equivalent.
  8. Remove the crankshaft key, if required.
  9. Remove the crankshaft front oil seal.

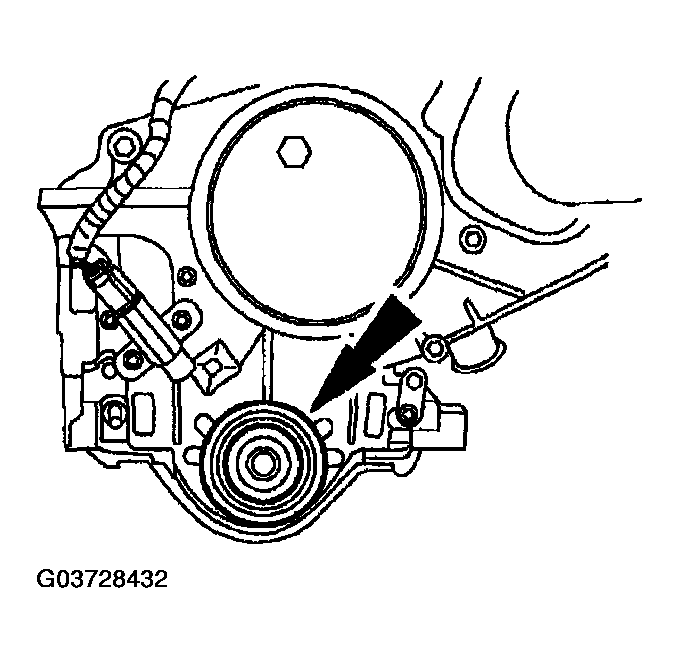

    Fig 3: Removing Crankshaft Front Oil Seal
    G03728432Courtesy of MAZDA MOTORS CORP.
  10. Install in the reverse order of removal by taking care of the following note.
