Air Cleaner Outlet Tube Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.

Remove the crankcase ventilation tube.

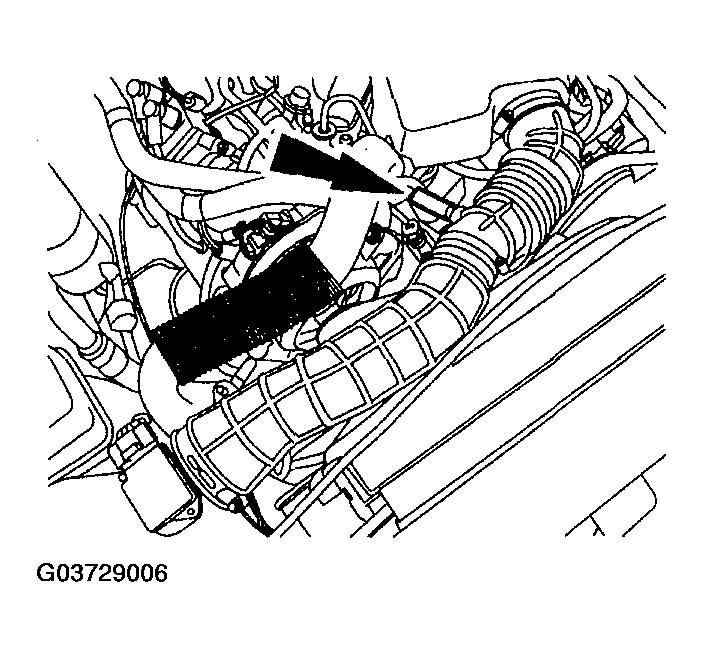

Fig 1: Removing Crankcase Ventilation Tube
Courtesy of MAZDA MOTORS CORP.
Loosen the clamps and remove the air cleaner outlet tube.

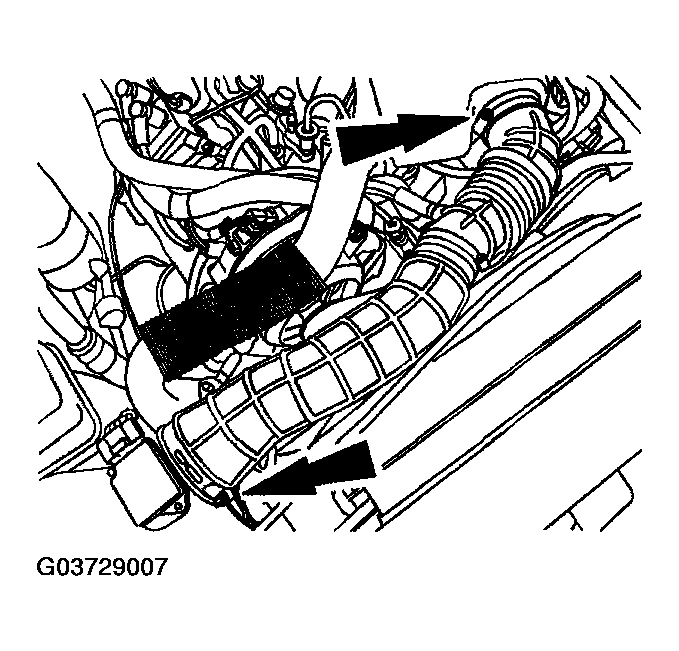

Fig 2: Removing Clamps And Air Cleaner Outlet Tube
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Visually check the air cleaner intake tube and duct for any foreign objects or restrictions.
Install in reverse order of removal.
