Cooling Fan And Clutch Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the fan shroud. See FAN SHROUD REMOVAL/INSTALLATION - 3.0L  .
  2. Remove the bolts.

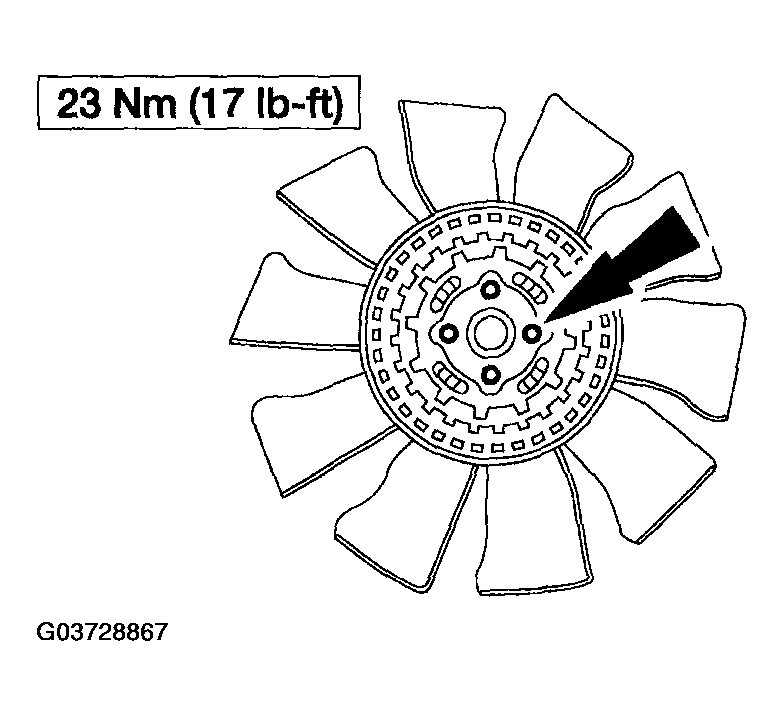

    Fig 1: Removing Cooling Fan And Clutch Bolts - With Torque Specifications
    G03728867Courtesy of MAZDA MOTORS CORP.
  3. Separate the fan blade from the fan clutch.

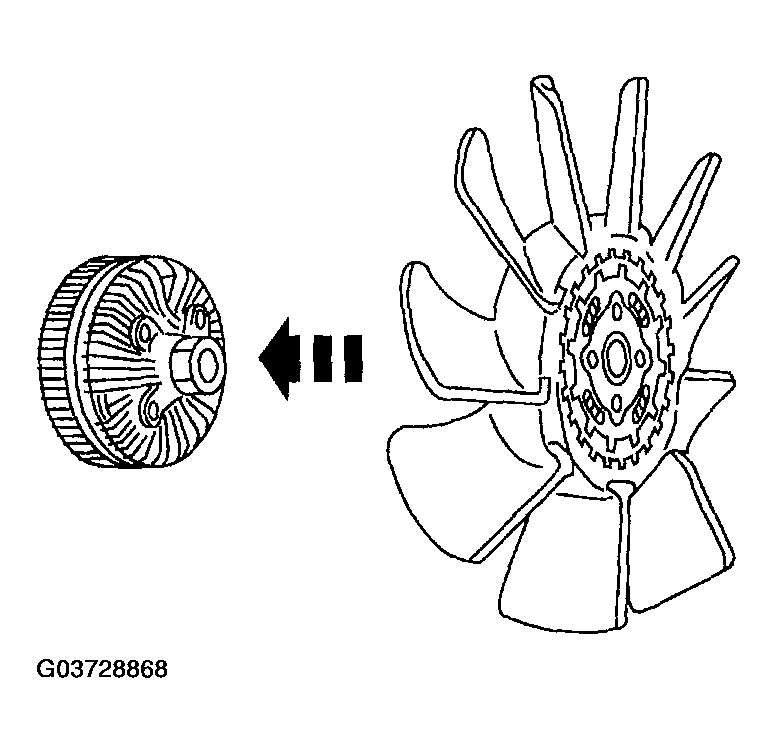

    Fig 2: Separating Fan Blade From Fan Clutch
    G03728868Courtesy of MAZDA MOTORS CORP.
  4. To install, reverse the removal procedure.
