Drive Belt Removal/Installation - 3.0L

WARNING: This page is about a different car, the 2005 Mazda B3000. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • Conditions requiring replacement of the drive belt are excessive cracking or wear, severe glazing or frayed cords. Replace drive belts exhibiting any of these conditions. Minor cracks in the back of the drive belt are considered acceptable.
  1. Remove the drive belt.
    1. Rotate the belt tensioner.
    2. Remove the drive belt.

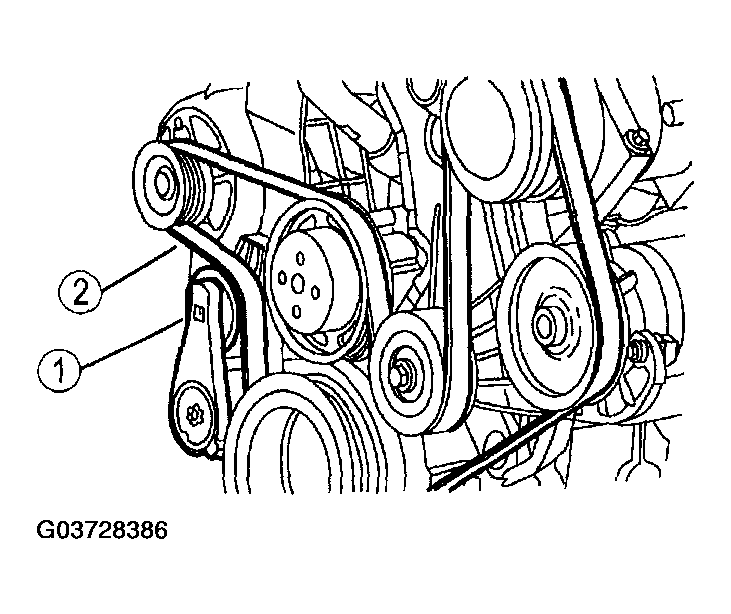

    Fig 1: Removing Drive Belt
    G03728386Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal.
    Fig 2: Identifying Drive Belt Routing
    G03728387Courtesy of MAZDA MOTORS CORP.
