DTC Index - Anti-Lock Brake System (Abs)

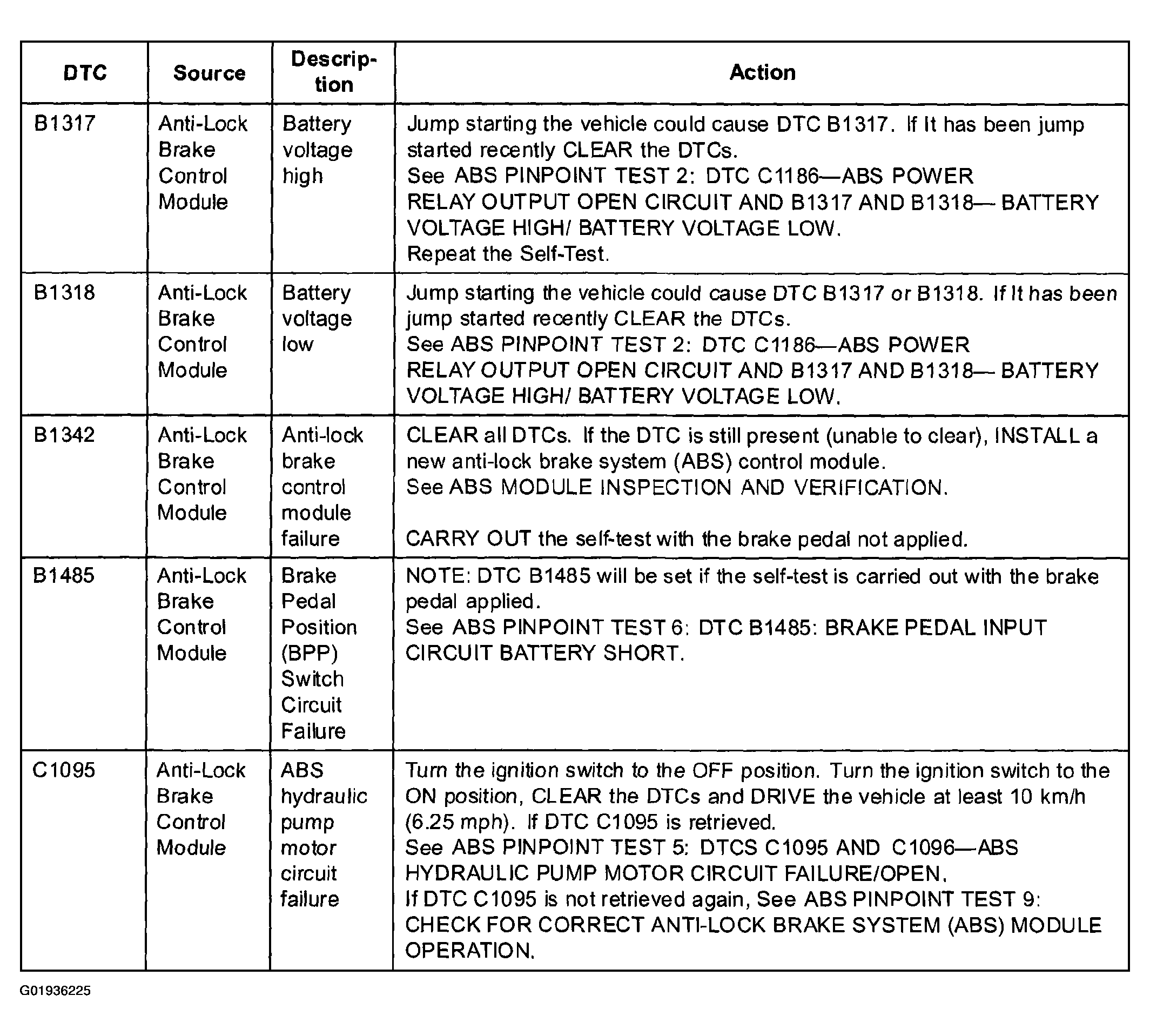

Fig 1: DTC Index - Anti-Lock Brake System (B1317-B1485 & C1095)

Courtesy of MAZDA MOTORS CORP.

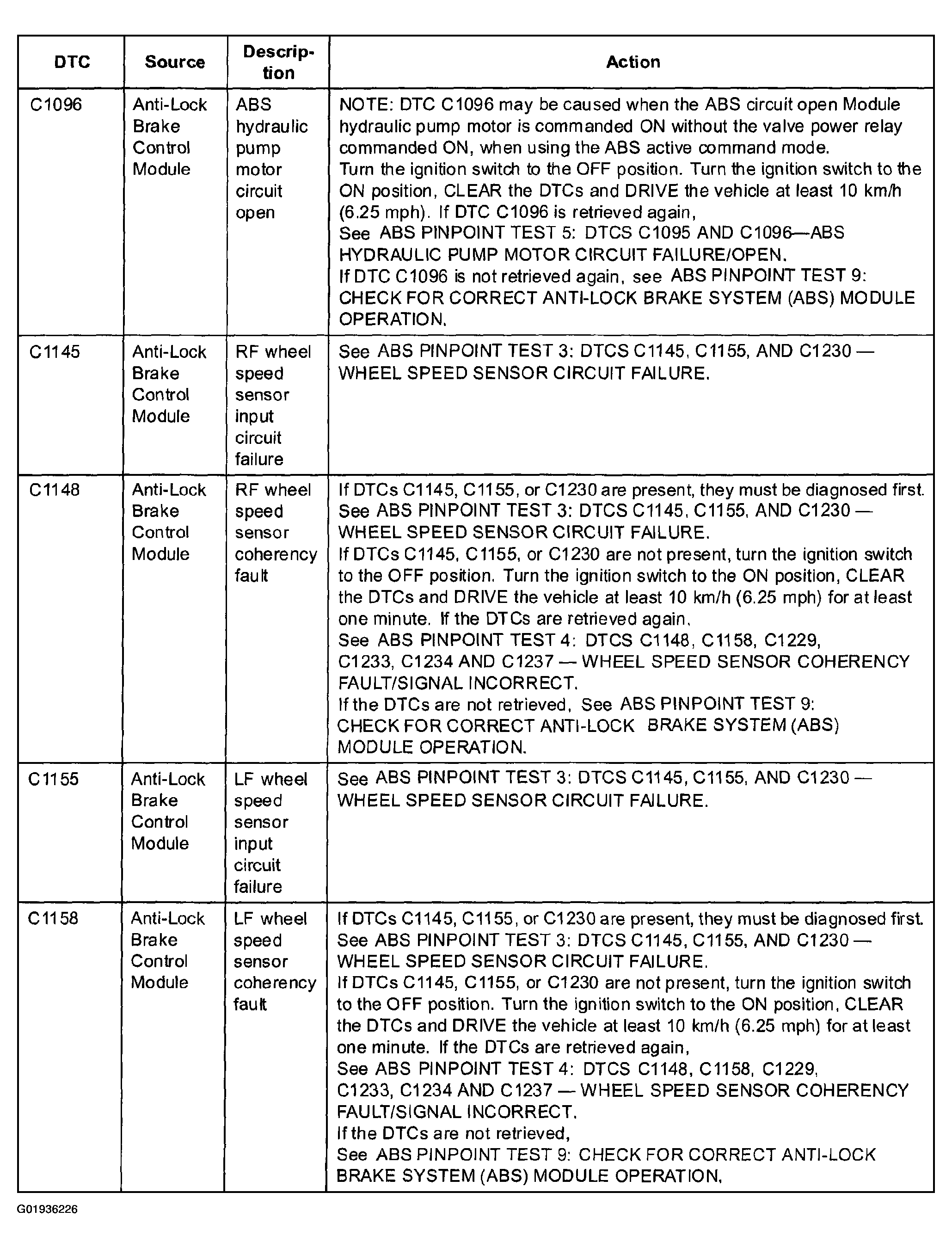

Fig 2: DTC Index - Anti-Lock Brake System (C1096-C1158)

Courtesy of MAZDA MOTORS CORP.

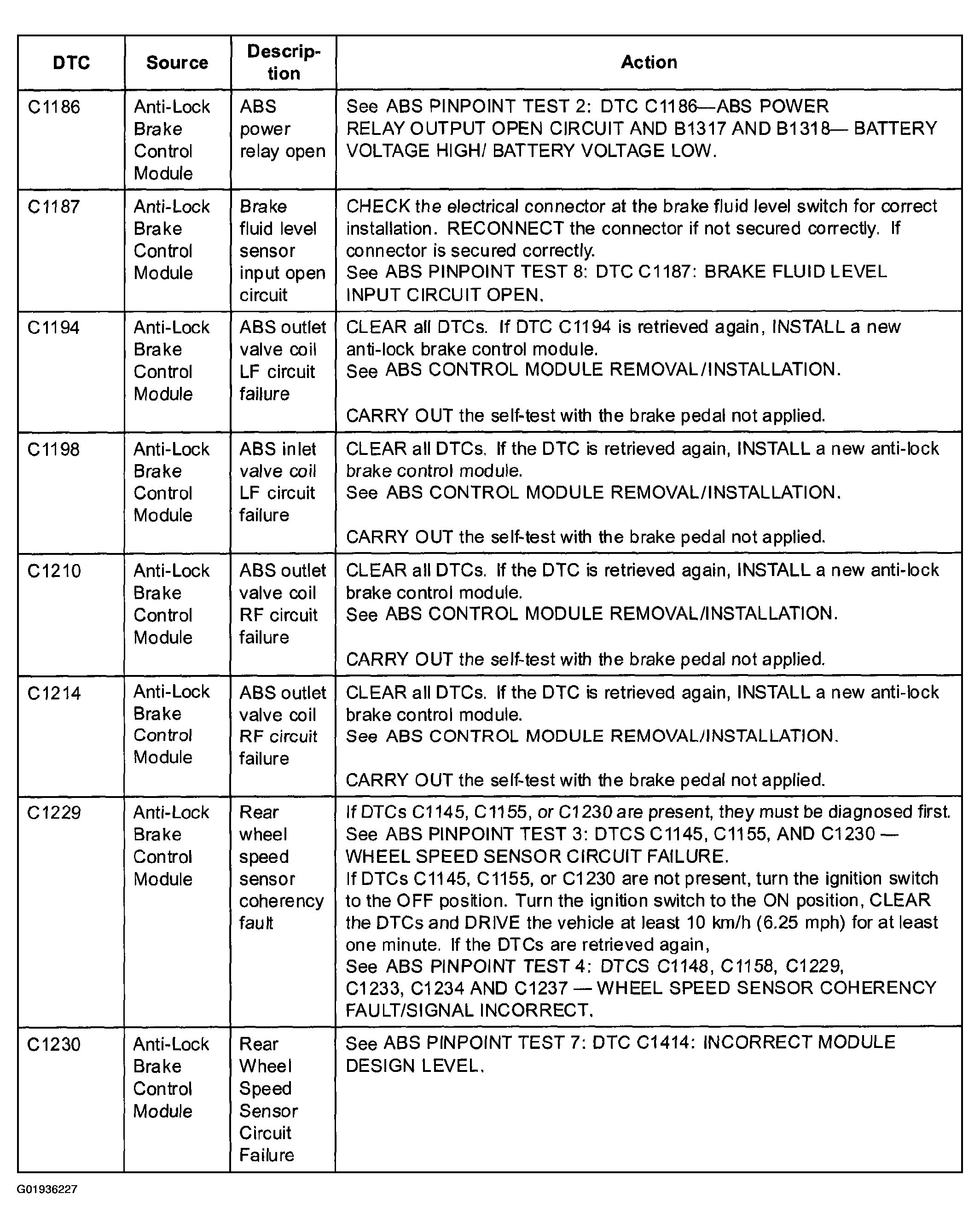

Fig 3: DTC Index - Anti-Lock Brake System (C1186-C1230)

Courtesy of MAZDA MOTORS CORP.

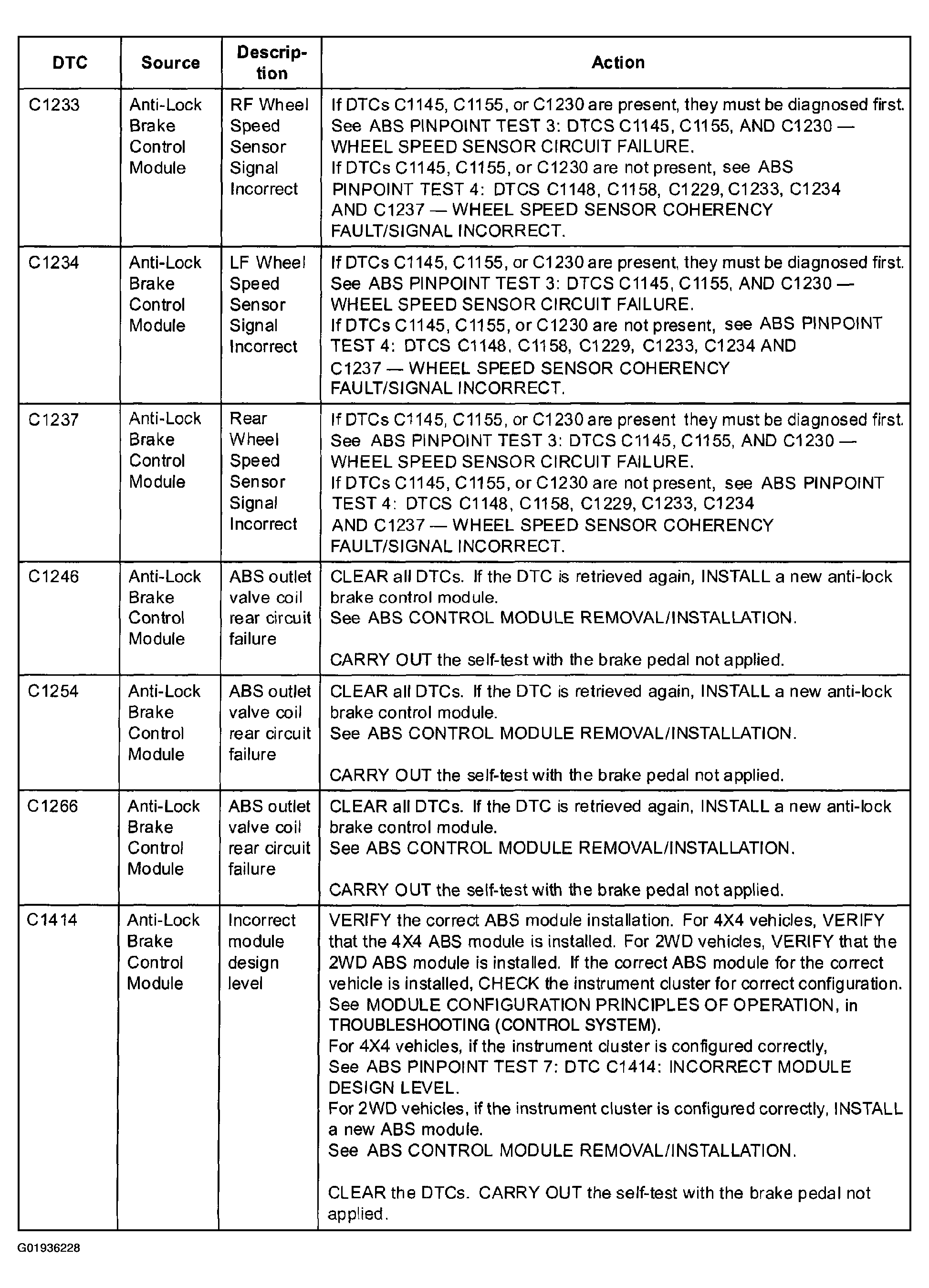

Fig 4: DTC Index - Anti-Lock Brake System (C1233-C1414)

Courtesy of MAZDA MOTORS CORP.

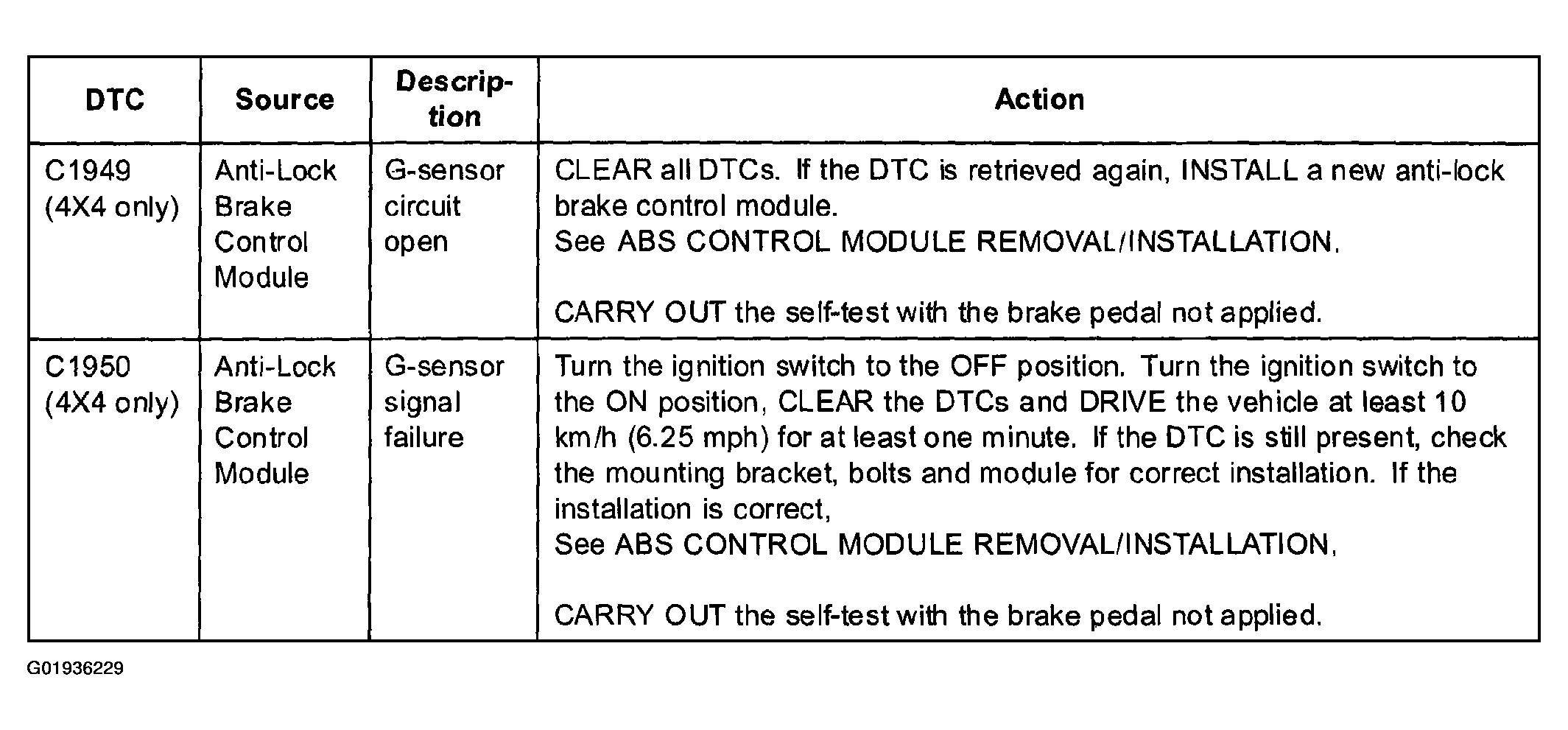

Fig 5: DTC Index - Anti-Lock Brake System (C1949-C1950)

Courtesy of MAZDA MOTORS CORP.

DIAGNOSTIC TROUBLE CODES (DTC) LIST

DTC	Descripton
B1317, B1318	Battery Voltage High/Low
B1485	Brake Pedal Position (BPP) Switch Circuit Failure
C1095, C1096	ABS Hydraulic Pump Motor Circuit Failure
C1145, C1155, C1230	Wheel Speed Sensor Input Circuit Failure
C1148, C1158, C1229, C1233, C1234, C1237	Wheel Speed Sensor Coherency Fault/Signal Incorrect
C1186	ABS Power Relay Oupot Open Circuit
C1187	Brake Fluid Level Input Circuit Open
C1230, C1414	Incorrect Module Design Level
