Abs Pinpoint Test 4: DTCS C1148, C1158, C1229, C1233, C1234 And C1237 - Wheel Speed Sensor Coherency Fault/Signal Incorrect

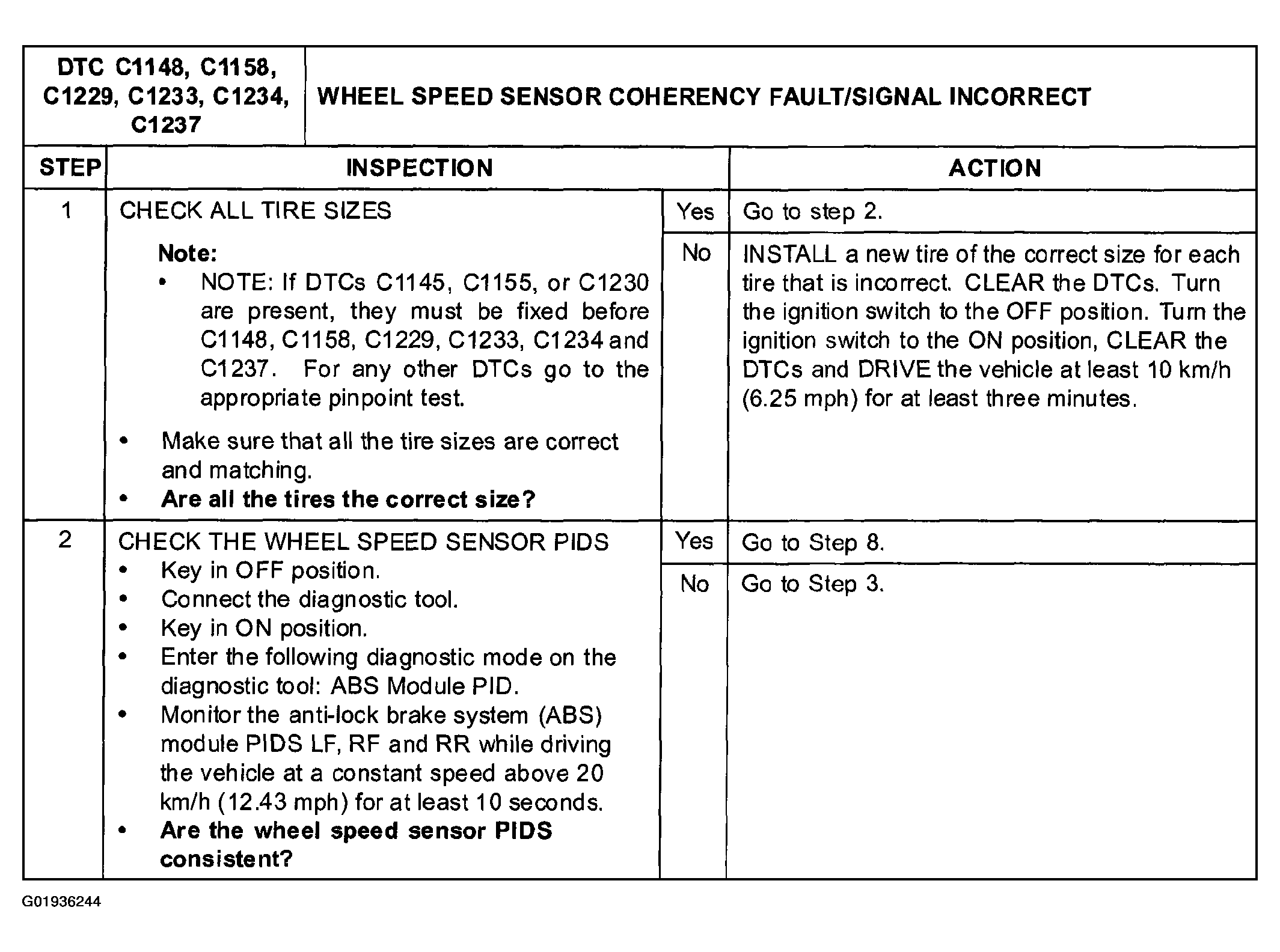

Fig 1: ABS Pinpoint Test 4: DTCS C1148, C1158, C1229, C1233, C1234 And C1237 - Wheel Speed Sensor Coherency Fault/Signal Incorrect (Steps 1-2)

Courtesy of MAZDA MOTORS CORP.

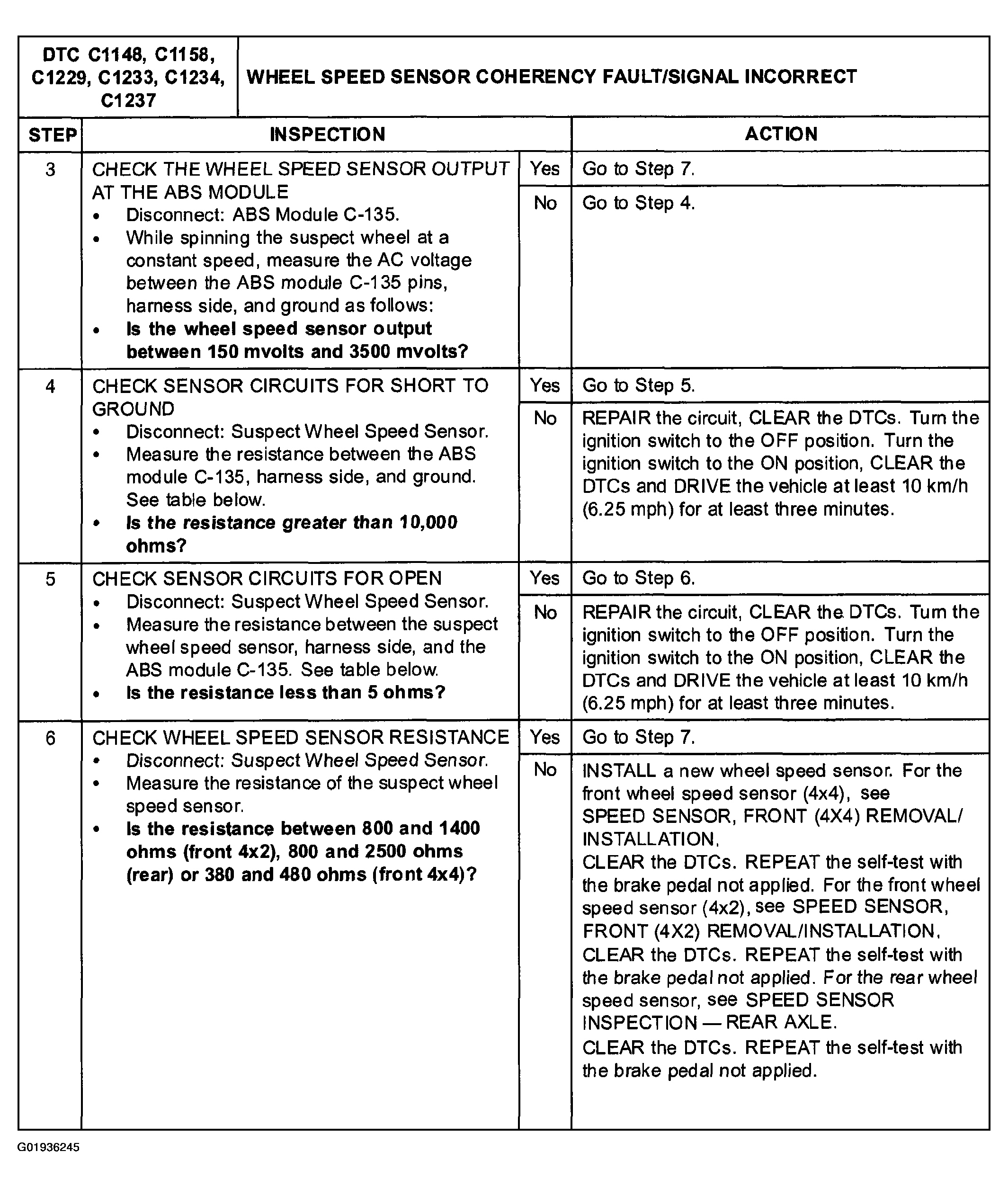

Fig 2: ABS Pinpoint Test 4: DTCS C1148, C1158, C1229, C1233, C1234 And C1237 - Wheel Speed Sensor Coherency Fault/Signal Incorrect (Steps 3-6)

Courtesy of MAZDA MOTORS CORP.

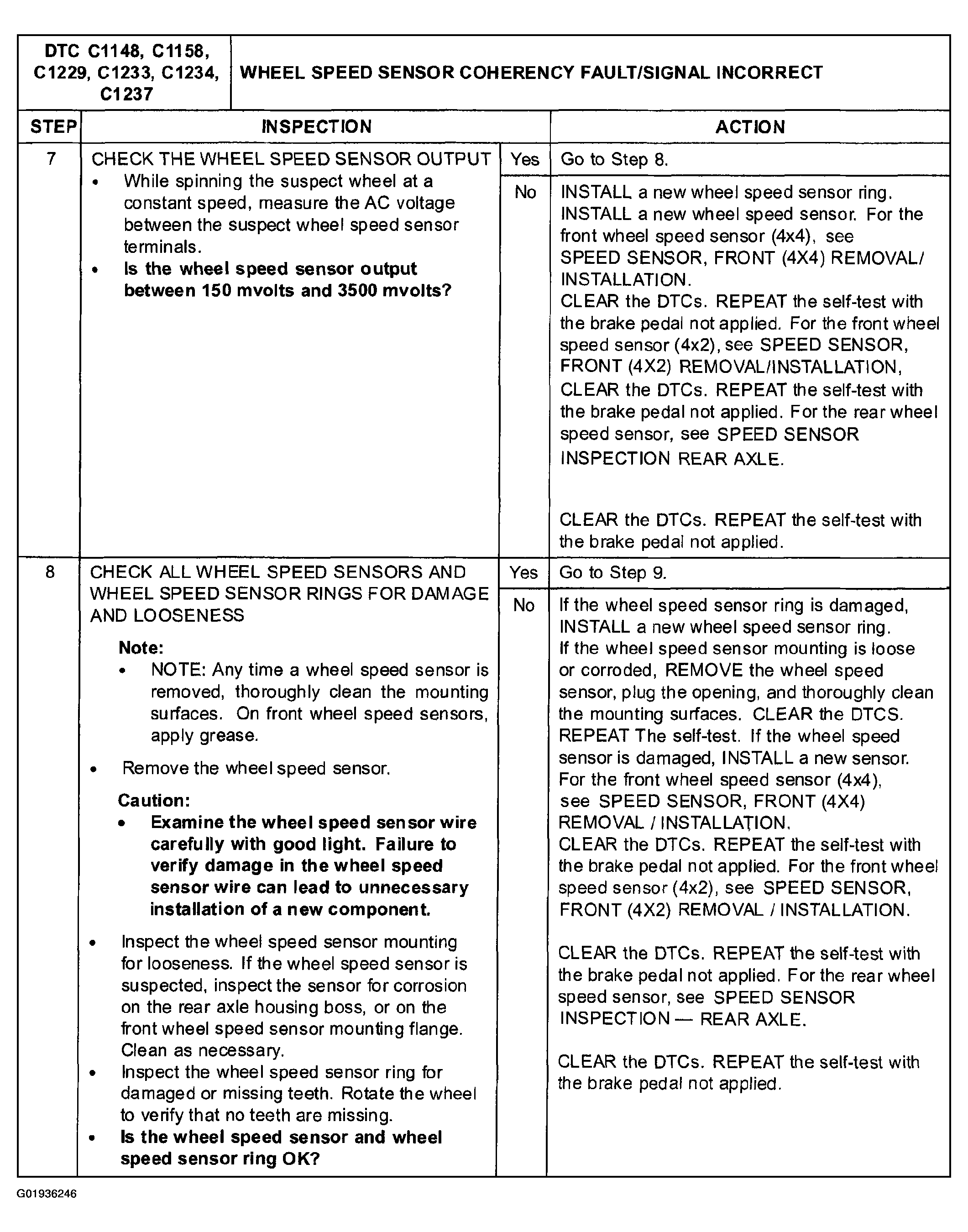

Fig 3: ABS Pinpoint Test 4: DTCS C1148, C1158, C1229, C1233, C1234 And C1237 - Wheel Speed Sensor Coherency Fault/Signal Incorrect (Steps 7-8)

Courtesy of MAZDA MOTORS CORP.

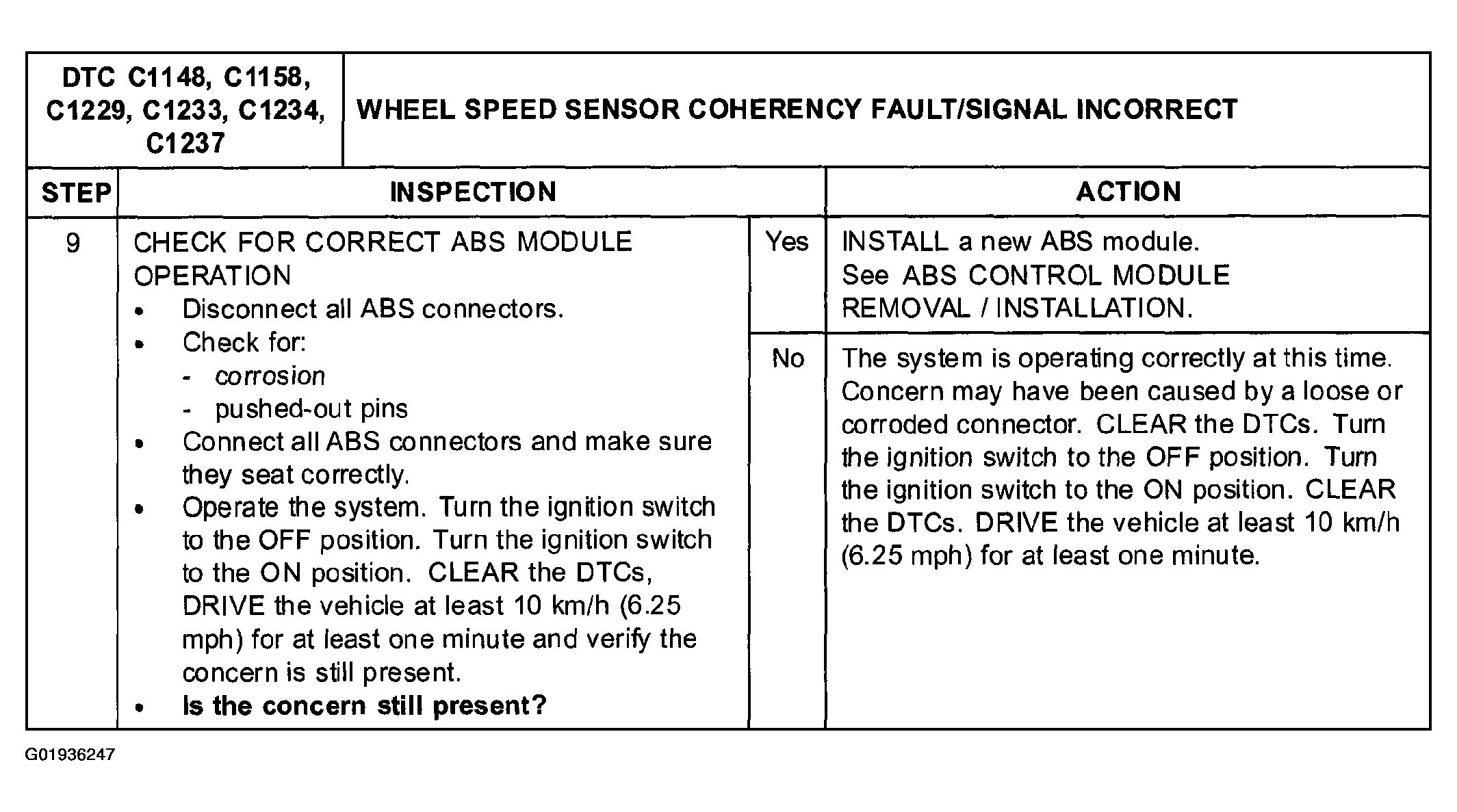

Fig 4: ABS Pinpoint Test 4: DTCS C1148, C1158, C1229, C1233, C1234 And C1237 - Wheel Speed Sensor Coherency Fault/Signal Incorrect (Step 9)

Courtesy of MAZDA MOTORS CORP.

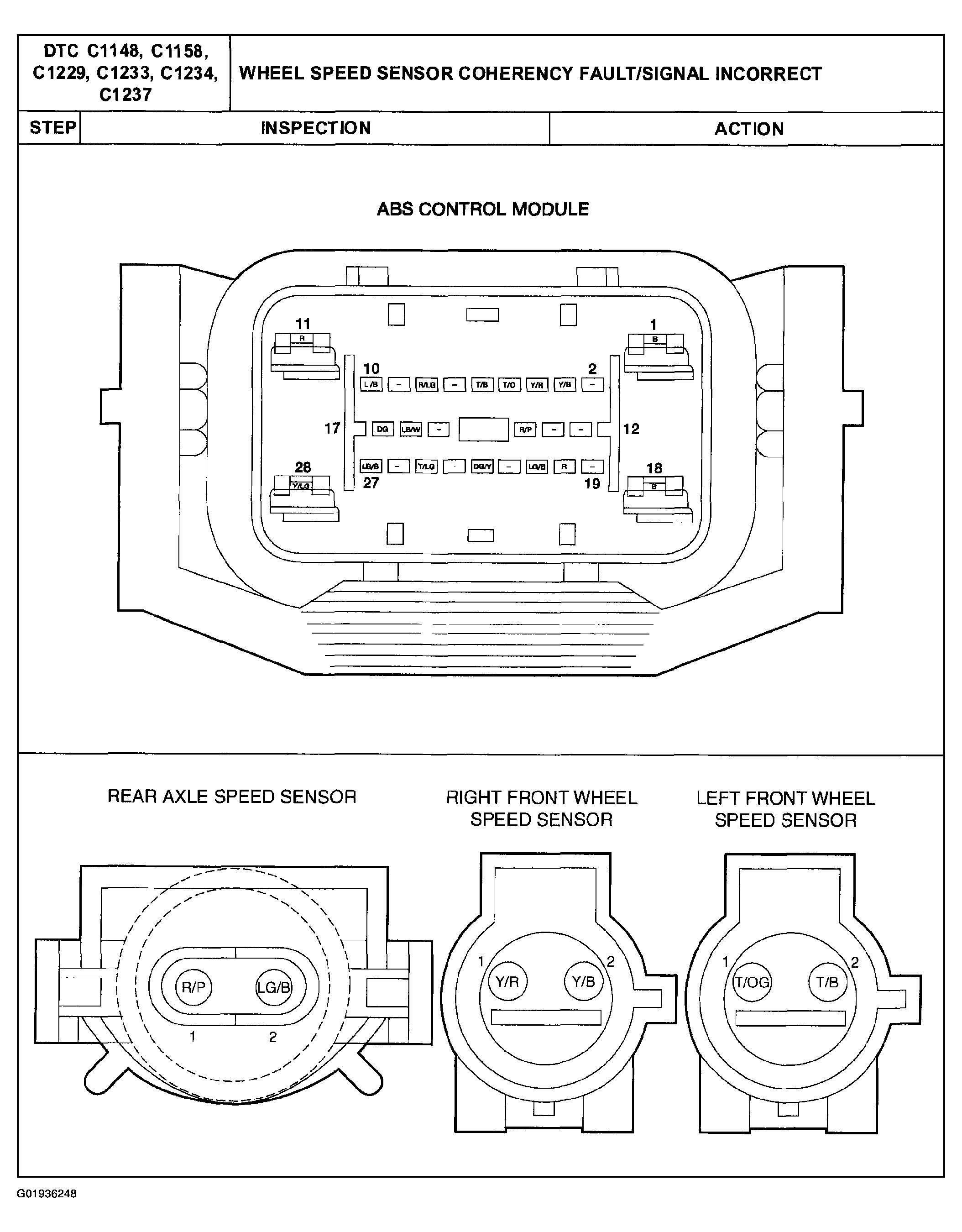

Fig 5: ABS Pinpoint Test 4: Identifying ABS Control Module And Speed Sensor Connector Terminals

Courtesy of MAZDA MOTORS CORP.

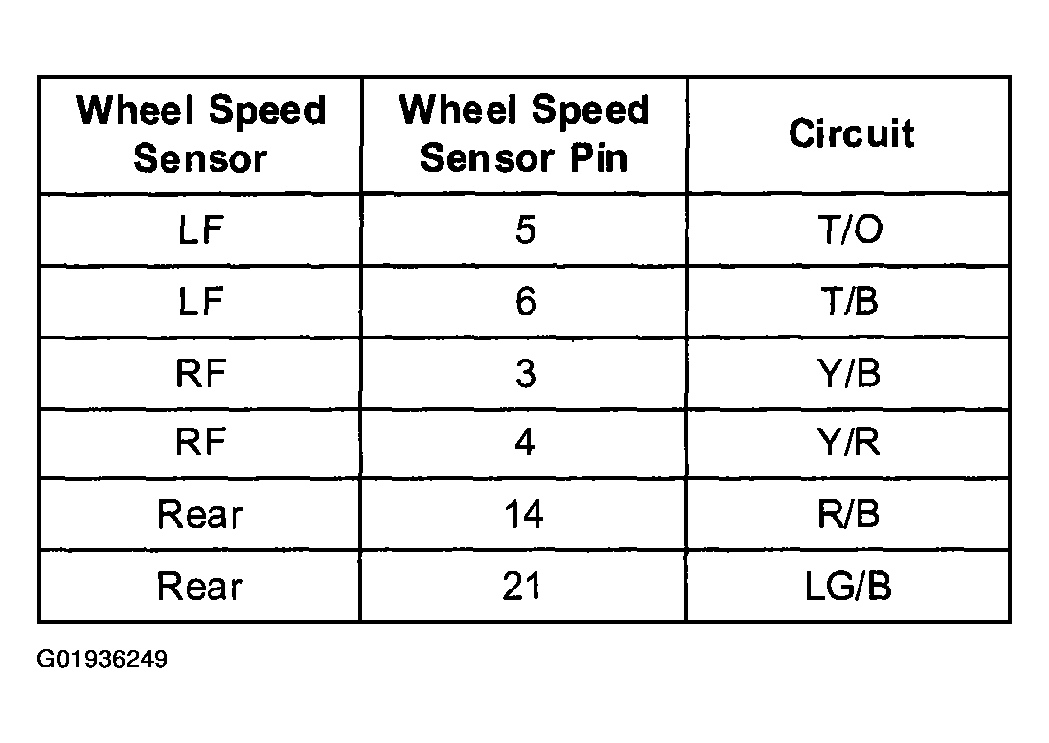

Fig 6: Wheel Speed Sensor Pin & Circuit Wire Color Table (1 Of 2)

Courtesy of MAZDA MOTORS CORP.

Fig 7: Wheel Speed Sensor Pin & Circuit Wire Color Table (2 Of 2)

Courtesy of MAZDA MOTORS CORP.
