Abs Pinpoint Test 3: DTCS C1145, C1155, And C1230 - Wheel Speed Sensor Circuit Failure

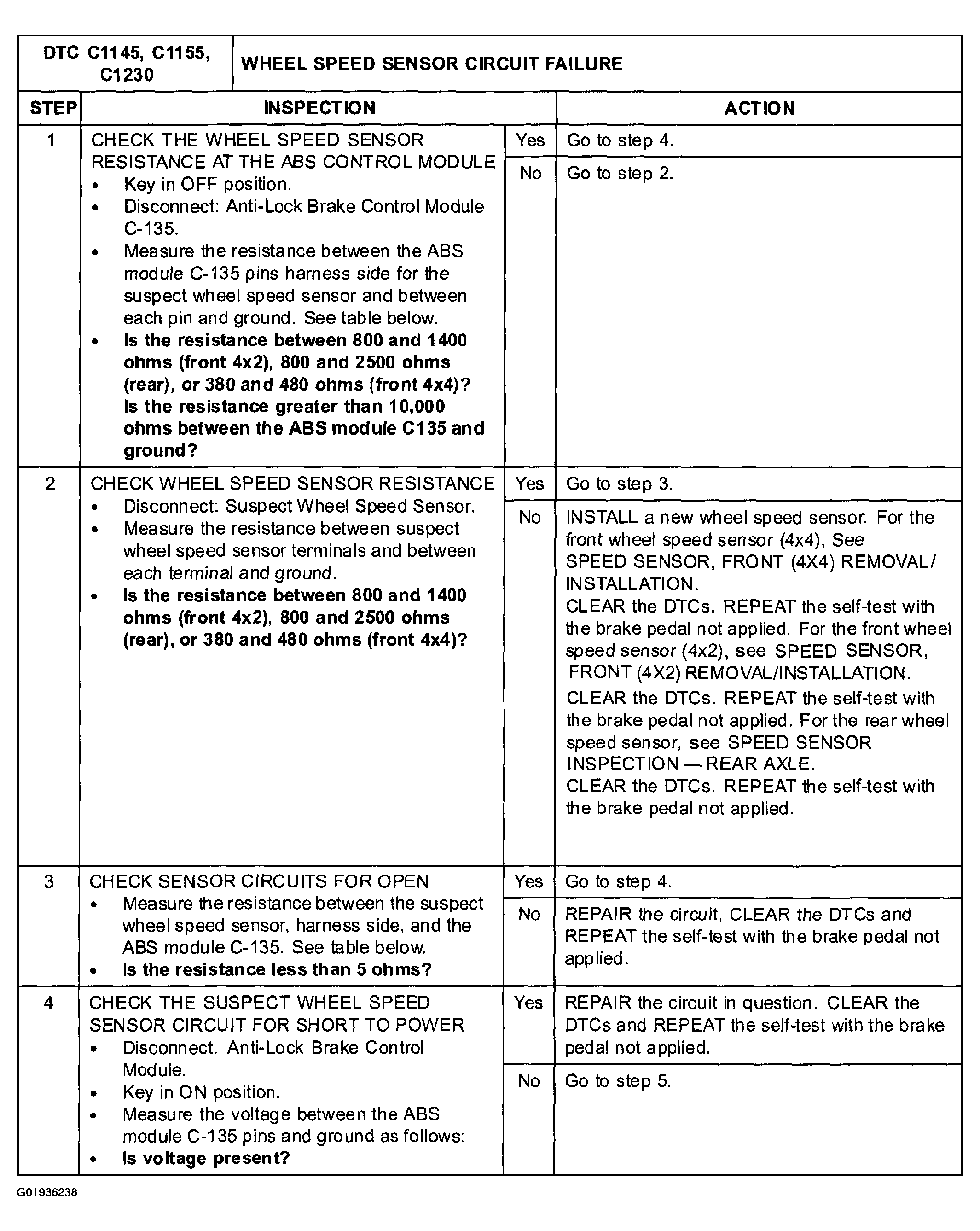

Fig 1: ABS Pinpoint Test 3: DTCS C1145, C1155, And C1230 - Wheel Speed Sensor Circuit Failure (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

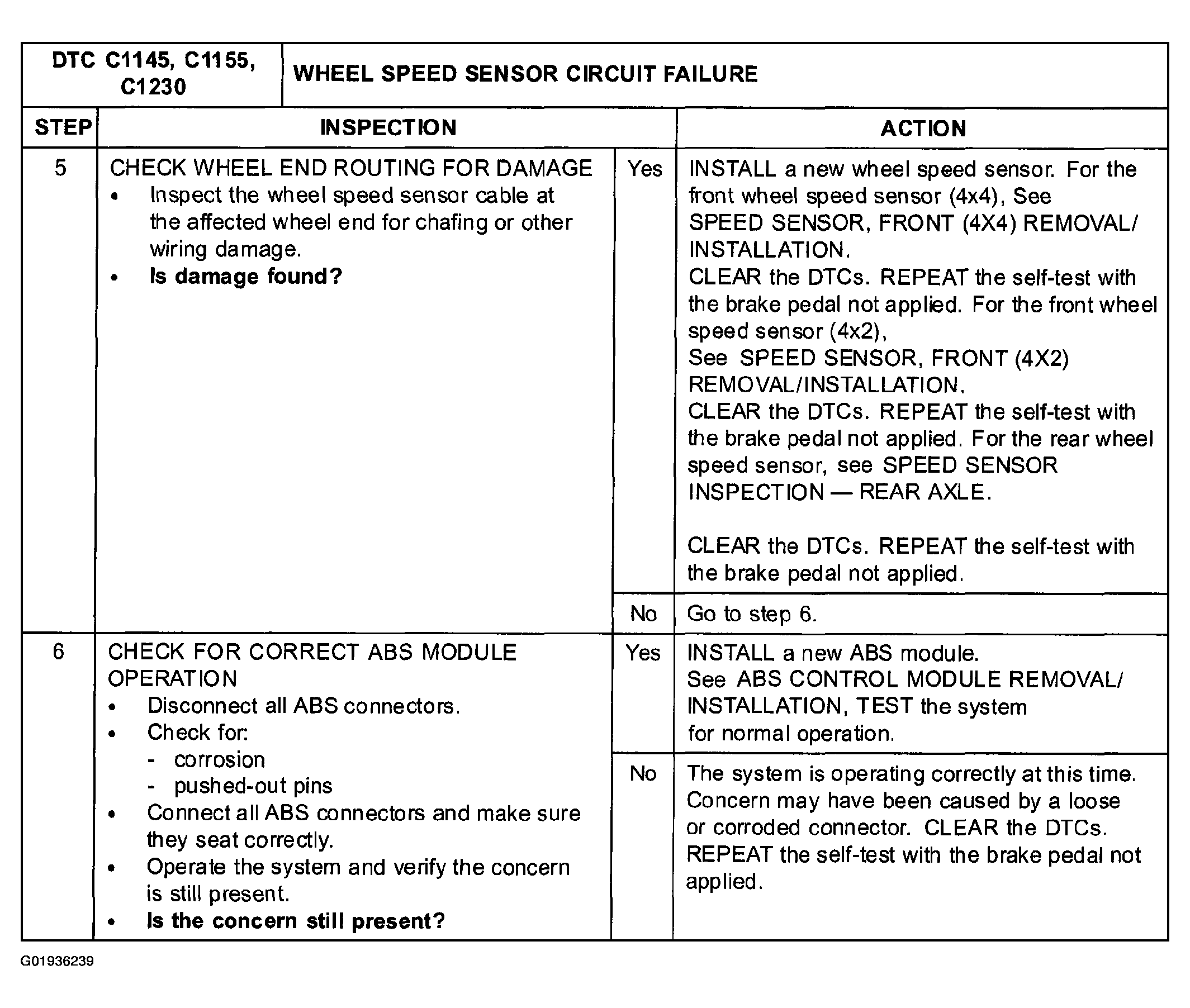

Fig 2: ABS Pinpoint Test 3: DTCS C1145, C1155, And C1230 - Wheel Speed Sensor Circuit Failure (Steps 5-6)

Courtesy of MAZDA MOTORS CORP.

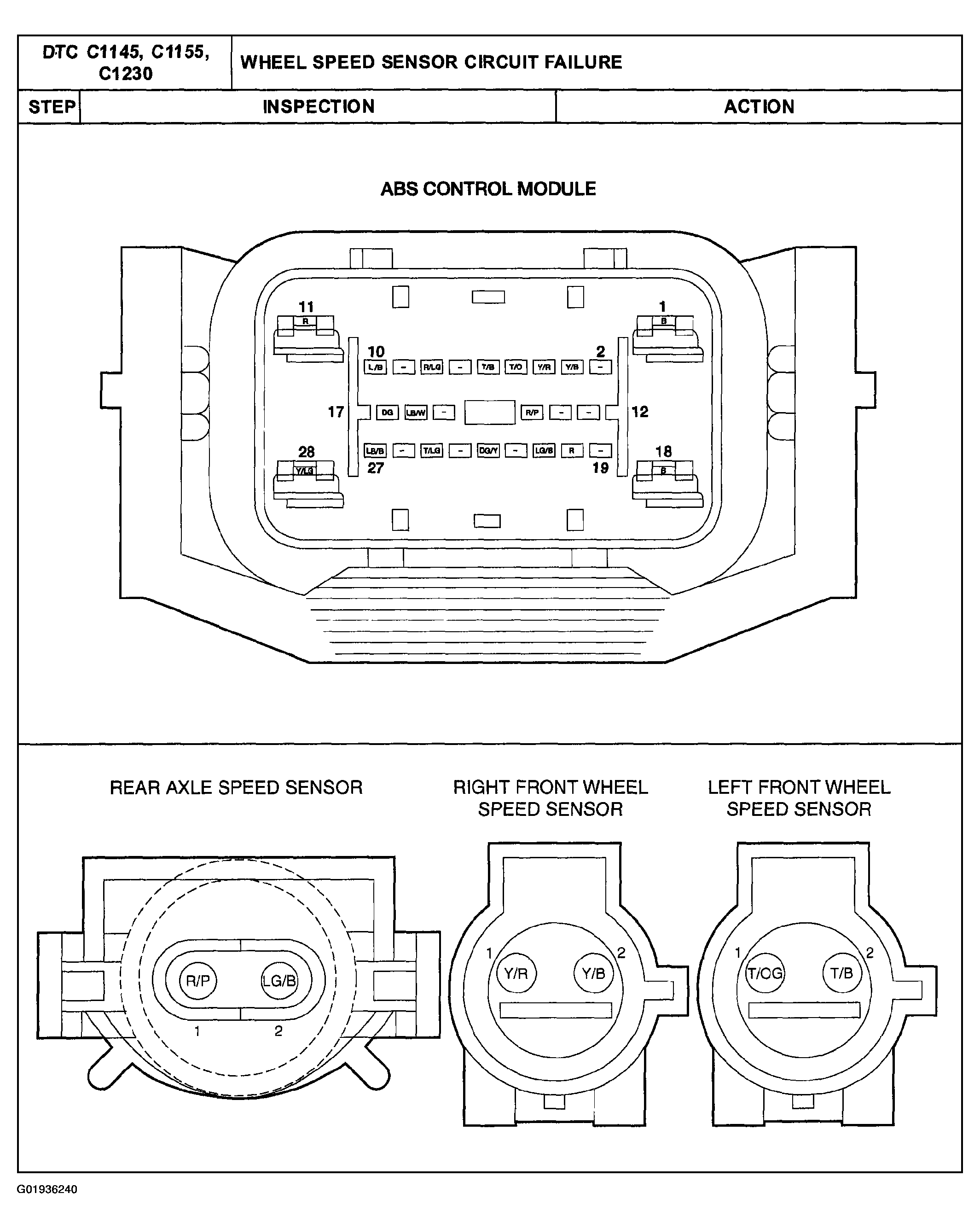

Fig 3: Identifying ABS Control Module And Wheel Speed Sensor Connector Terminals

Courtesy of MAZDA MOTORS CORP.

Fig 4: Wheel Speed Sensor Probe Table

Courtesy of MAZDA MOTORS CORP.

Fig 5: Wheel Speed Sensor Pin Table

Courtesy of MAZDA MOTORS CORP.

Fig 6: Wheel Speed Sensor & ABS Module Pin Table

Courtesy of MAZDA MOTORS CORP.
