Abs Pinpoint Test 6: DTC B1485: Brake Pedal Input Circuit Battery Short

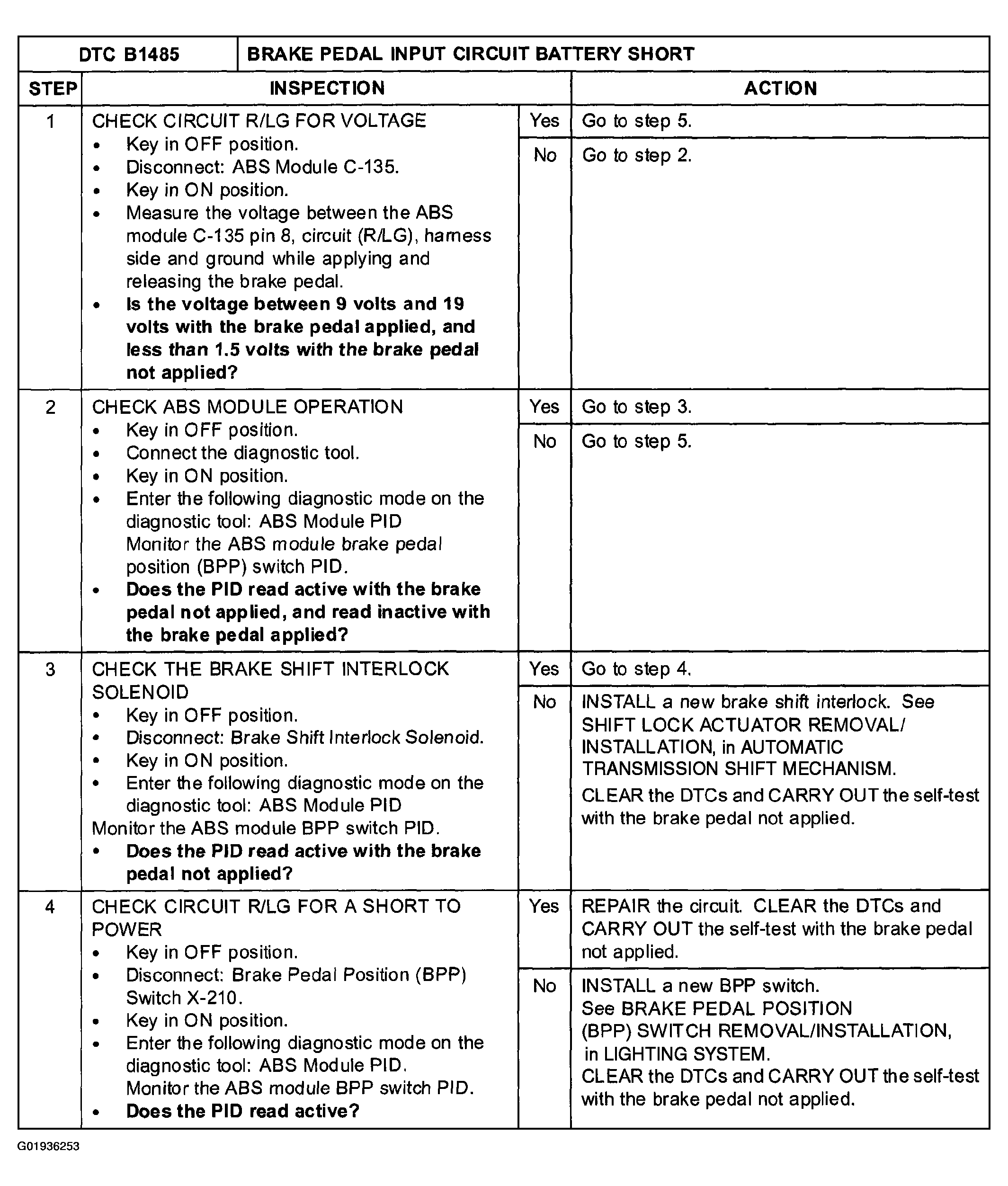

Fig 1: ABS Pinpoint Test 6: DTC B1485: Brake Pedal Input Circuit Battery Short (Steps 1-4)

Courtesy of MAZDA MOTORS CORP.

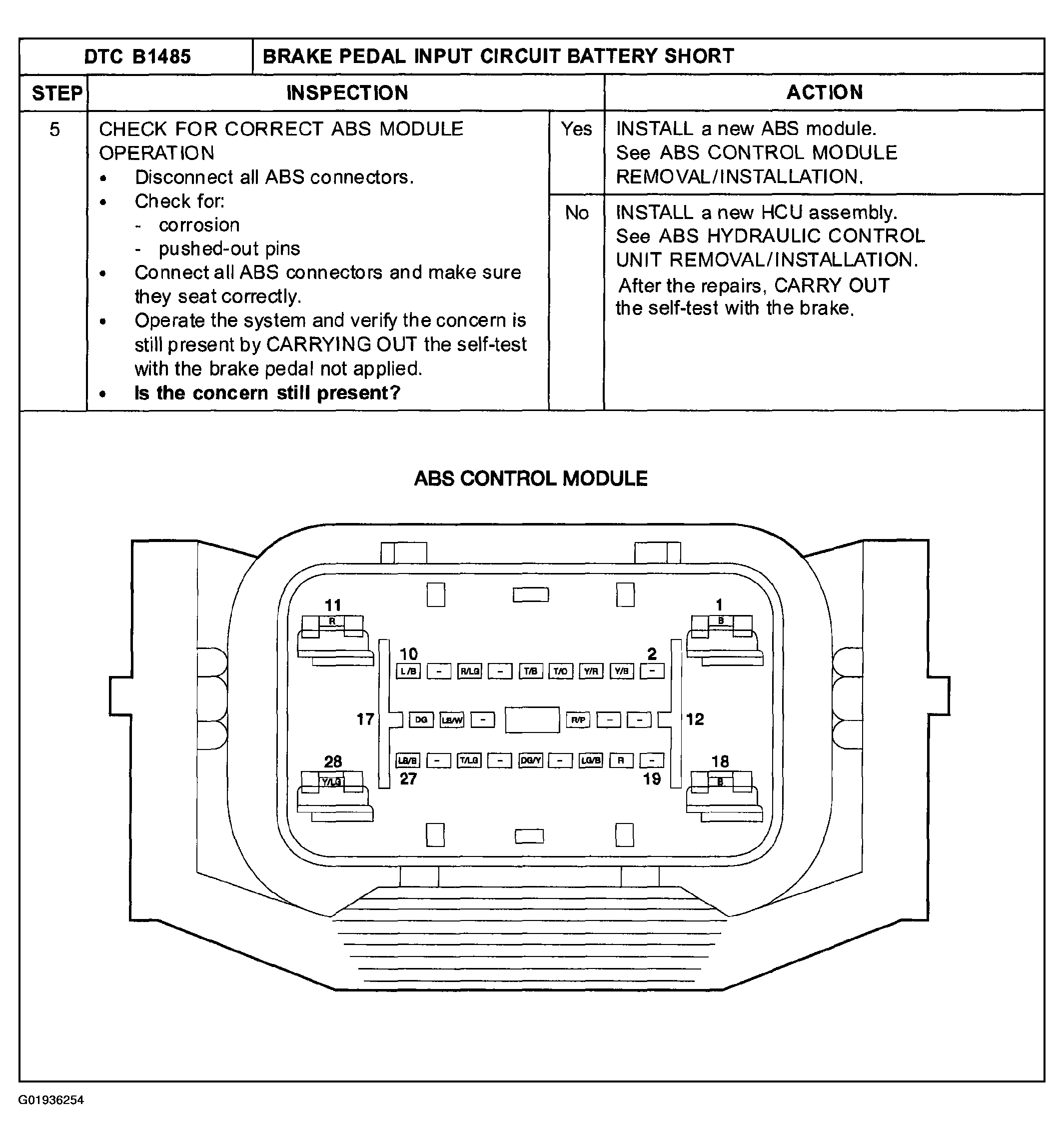

Fig 2: ABS Pinpoint Test 6: DTC B1485: Brake Pedal Input Circuit Battery Short (Step 5 & Identifying ABS Control Module Connector Terminals)

Courtesy of MAZDA MOTORS CORP.
