Floor Covering Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable.
  2. Remove the front seats. (See FRONT SEAT REMOVAL/INSTALLATION .)
  3. Remove the rear seat cushion. (See REAR SEAT REMOVAL/INSTALLATION .)
  4. Remove the tire house trim. (See TIRE HOUSE TRIM REMOVAL/INSTALLATION  .)
  5. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION  .)
  6. Remove the front side trim. (See FRONT SIDE TRIM REMOVAL/INSTALLATION  .)
  7. Remove the B-pillar lower trim. (See B-PILLAR LOWER TRIM REMOVAL  .) (See B-PILLAR LOWER TRIM INSTALLATION  .)
  8. Remove the lower anchor of the front seat belt installation bolts.
  9. Remove the selector cable if equipped with ATX. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  10. Remove the interlock cable if equipped with ATX. (See SELECTOR LEVER REMOVAL/INSTALLATION .)
  11. Remove the rear heat duct.
  12. Remove the fasteners and clips A, then remove the floor covering.
  13. Remove the floor covering from the vehicle through the passenger-side front door.

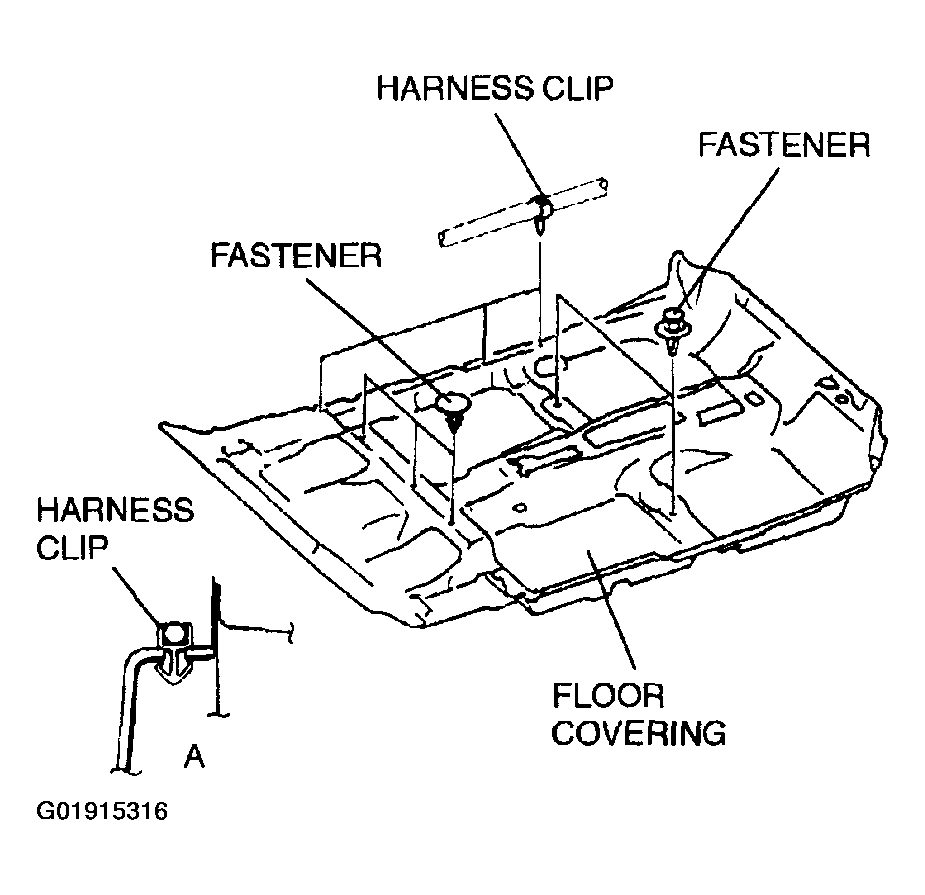

    Fig 1: Removing Floor Covering
    G01915316Courtesy of MAZDA MOTORS CORP.
  14. Install in the reverse order of removal.
