Dashboard Removal/Installation

WARNING: This page is about a different car, the 2003 Mazda Protege5 and 2003 Mazda Protege. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the passenger-side air bag module if equipped. (See PASSENGER-SIDE AIR BAG MODULE .)
  2. Remove the combination switch. (See COMBINATION SWITCH REMOVAL/INSTALLATION .)
  3. Remove the installation bolts then shift the assembled steering shaft in the dashboard. (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION .
  4. Remove the instrument cluster. (See INSTRUMENT CLUSTER REMOVAL/INSTALLATION .)
  5. Remove the console. (See CONSOLE REMOVAL/INSTALLATION  .)
  6. Remove the glove compartment.
  7. Remove the lower panel.
  8. Remove the hood release cable installation nut.
  9. Remove the side wall.
  10. Remove the A-pillar trim. (See A-PILLAR TRIM REMOVAL/INSTALLATION  .)
  11. Remove the side panel.
  12. Disconnect the antenna plug.
  13. For vehicles equipped with the semi-logic type climate control unit, disconnect the wires for the heater unit. (See CLIMATE CONTROL UNIT INSTALLATION .) (See CLIMATE CONTROL UNIT INSTALLATION .)
    Fig 1: Disconnecting Antenna Plug
    G01915267Courtesy of MAZDA MOTORS CORP.
  14. Disconnect the connectors.
    Fig 2: Disconnecting Connectors
    G01915268Courtesy of MAZDA MOTORS CORP.
  15. Remove the bolts.
  16. Remove the dashboard from the vehicle.
    WARNING:
    • Removing the dashboard without supporting it can be dangerous. The dashboard may fall and injure you. Always perform these procedures together with at least another person.

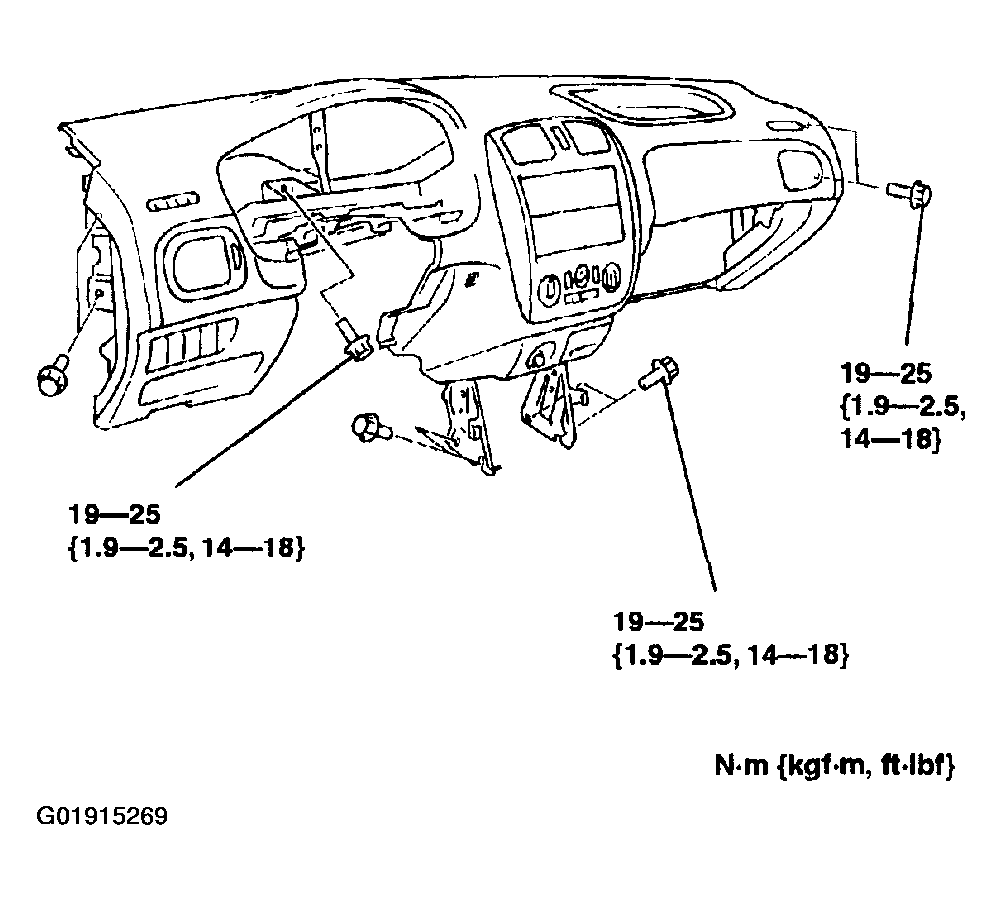

    Fig 3: Removing Dashboard From Vehicle
    G01915269Courtesy of MAZDA MOTORS CORP.
    1. Incline the dashboard slowly forward.
    2. Lift up the dashboard while it is inclined forward.
    3. Remove the dashboard from the vehicle through the passenger-side front door.
    Fig 4: Removing Dashboard From Vehicle Through Passenger-Side Front Door
    G01915270Courtesy of MAZDA MOTORS CORP.
  17. Install in the reverse order of removal.
