Diagnostic Procedure
WARNING: This page is about a different car, the 2002 Mazda Millenia. However, it is still accessible from the selected car via links, so may be relevant.
- Before proceeding, see AIR BAG SAFETY PRECAUTIONS . Turn ignition on. AIR BAG warning light in instrument cluster should illuminate for 6 seconds and then turn off. If AIR BAG warning light does not function as described, go to next step. If AIR BAG warning light functions as described, go to step 3.
- Check for air bag system malfunctions. See SYMPTOM TROUBLE SHOOTING . Perform appropriate test as necessary. Once tests have been completed, check for correct operation. Go to step 1.
- Measure voltage at DLC connector, terminal SCN (White/Red wire). Voltage should be more than 2 volts. If voltage is as specified, go to step 5. If voltage is not as specified, go to next step.
- Turn ignition off. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Access SAS control module and disconnect unit connectors. Check between DLC connector terminal SCN and SAS control module connector, terminal No. 2K (White/Red wire) for short to ground or open circuit. See Figure & Figure

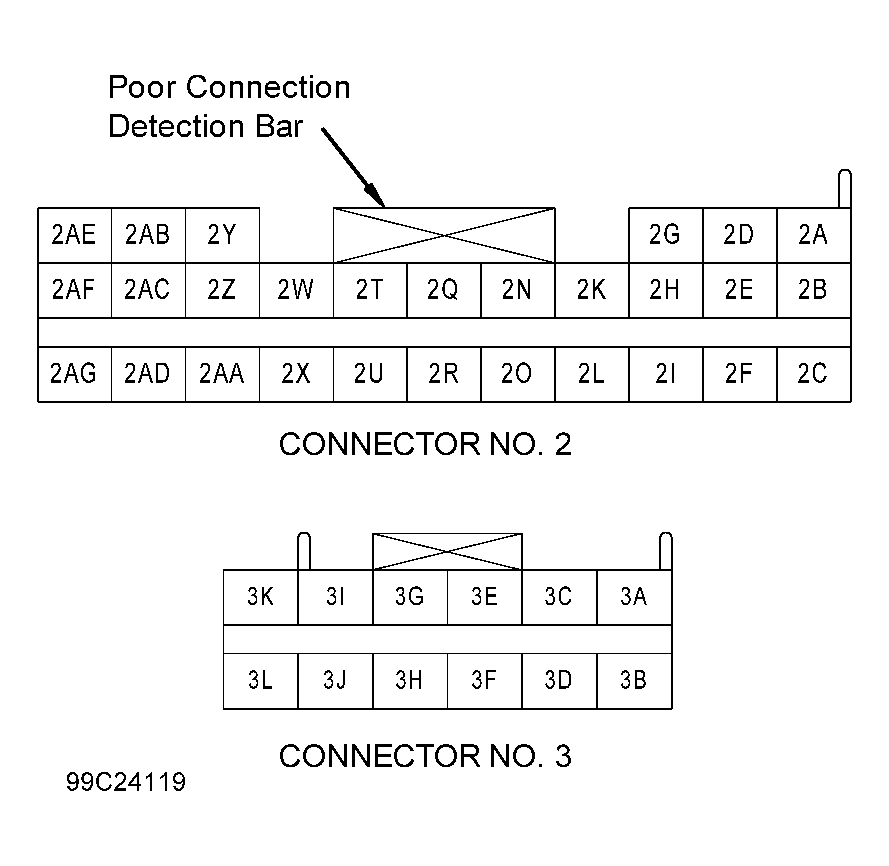

. If White/Red wire is not okay, replace air bag wiring harness between SAS control module and DLC connector and go to step 6. If White/Red wire is okay, go to step 6.
- Turn ignition off. Disable air bag system. See DISABLING & ACTIVATING AIR BAG SYSTEM . Access SAS control module and disconnect unit connector. See SAS CONTROL MODULE under REMOVAL & INSTALLATION. Connect negative battery cable. Turn ignition on. Measure voltage between ground and DLC connector terminal SCN (White/Red wire). If voltage is about 12 volts, replace wiring harness between SAS control module and DLC connector and go to next step. If voltage is not about 12 volts, disconnect negative battery cable and go to next step.
- Reconnect all connectors. Connect negative battery cable. Turn ignition on. If AIR BAG warning light starts flashing (indicating present DTC exists), record code(s) and go to step 9. If AIR BAG warning light does not flash DTCs, go to next step.
- Turn ignition off. Using a jumper wire, short DLC connector, terminal SCN (White/Red wire) to ground. Turn ignition on. If AIR BAG warning light starts flashing (indicating past DTC exists), record indicated past malfunction code(s) and go to next step. If AIR BAG warning light does not start flashing, system is okay at this time.
- Turn ignition off. Disconnect jumper wire from ground. Identify retrieved past malfunction code. See AIR BAG DIAGNOSTIC TROUBLE CODES (DTC) table. Check appropriate connectors in circuit applicable to code(s) retrieved for proper connections. Turn ignition on and wiggle related air bag wiring harness. If AIR BAG warning light flashes, record indicated present malfunction code(s) and go to next step. If AIR BAG warning light does not flash, turn ignition off and disconnect jumper wire. Refer to past malfunction code(s) recorded in step 7 and go to next step.
- Perform appropriate DTC tests starting with smallest code. See DIAGNOSTIC TESTS . Check all components and wiring harness as described in testing, even if checks have already been performed. Once appropriate tests have been performed, clear past malfunction codes and go to step 6. See CLEARING PAST MALFUNCTION DTCS .
AIR BAG DIAGNOSTIC TROUBLE CODES (DTC)
| DTC |
Possible Cause |
| 1 |
SAS control module poor connection |
| 2 |
SAS control module internal malfunction |
| 3 |
SAS control module power supply circuit |
| 6 |
Driver-side air bag module circuit |
| 7 |
Passenger-side air bag module circuit |
| 22 |
Left side air bag sensor internal circuit |
| 25 |
Left side air bag sensor communication error |
| 26 |
Left side air bag module circuit |
| 32 |
Right side air bag sensor internal circuit |
| 35 |
Right side air bag sensor communication error |
| 37 |
Right side air bag module circuit |
| 91 |
AIR BAG warning light circuit |
