A/C Compressor Removal/Installation (4.0L)

WARNING: This page is about a different car, the 2002 Mazda B4000, 2002 Mazda B3000, and 2002 Mazda B2300. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • When installing a new A/C compressor due to an internal failure of the old unit, you must carry out the following procedures to remove contamination from the air conditioning system:
  • If A/C flushing equipment is available, carry out the flushing of the air condition system prior to installing a new air conditioning compressor.
  • If A/C flushing equipment is not available, carry out the filtering of the air conditioning system after a new air conditioning compressor has been installed. See REFRIGERANT SYSTEM FILTERING AFTER A/C COMPRESSOR REPLACEMENT  .
  • Install a new evaporator core orifice as directed by the A/C flushing or filtering procedure. See EVAPORATOR CORE ORIFICE REMOVAL/INSTALLATION  .
  • Replace the receiver/drier. See RECEIVER/DRIER REMOVAL/INSTALLATION
NOTE: Replacement of the suction accumulator is not required when repairing the air conditioning system except when there is physical evidence of system contamination from a failed A/C compressor or damage to the suction accumulator.
  1. If flushing of the refrigerant system has not been performed, recover the refrigerant; see REFRIGERANT SYSTEM TESTS  .
  2. Remove the accessory drive belt from the A/C compressor pulley. See BELT ROUTING .
  3. Remove the bolts and detach the power steering fluid reservoir.

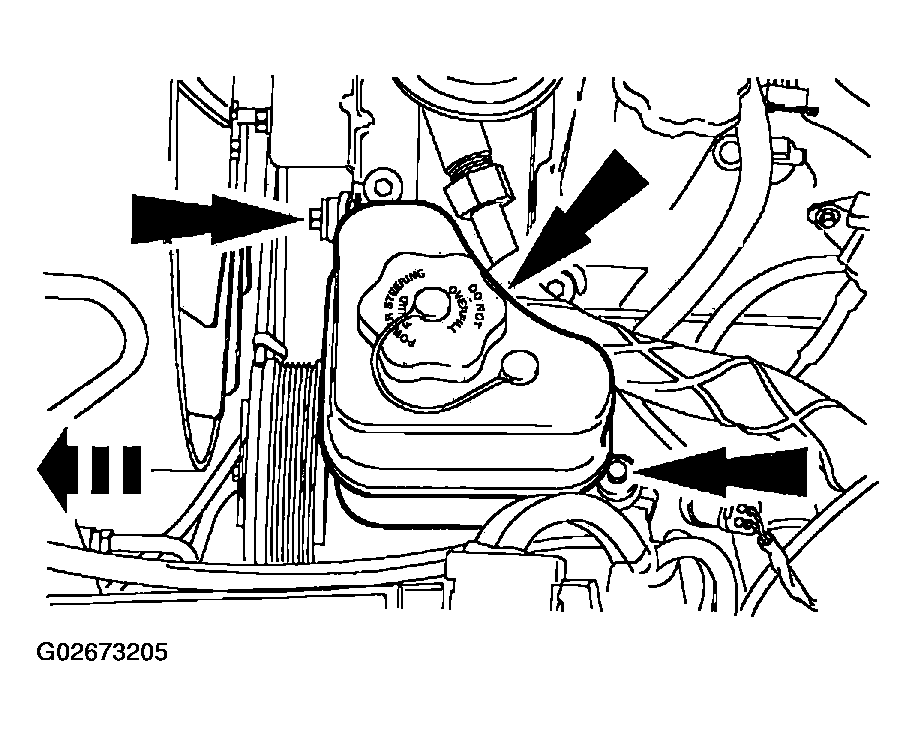

    Fig 1: Removing Power Steering Fluid Reservoir
    G02673205Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolts and the bracket.

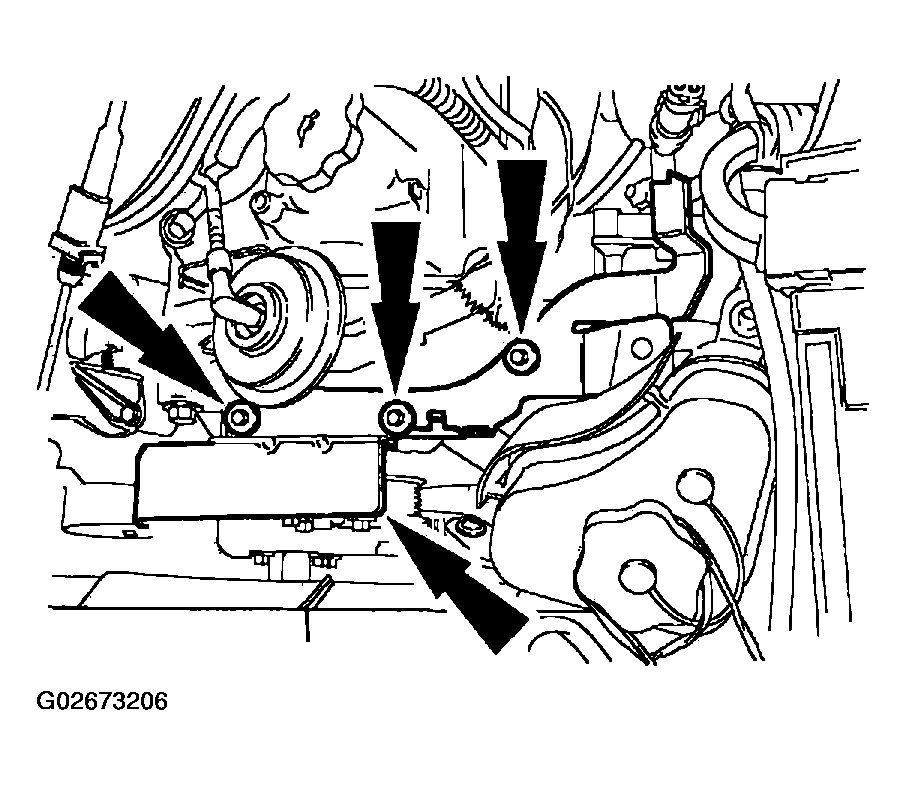

    Fig 2: Removing Bracket
    G02673206Courtesy of MAZDA MOTORS CORP.
  5. Disconnect the electrical connector.

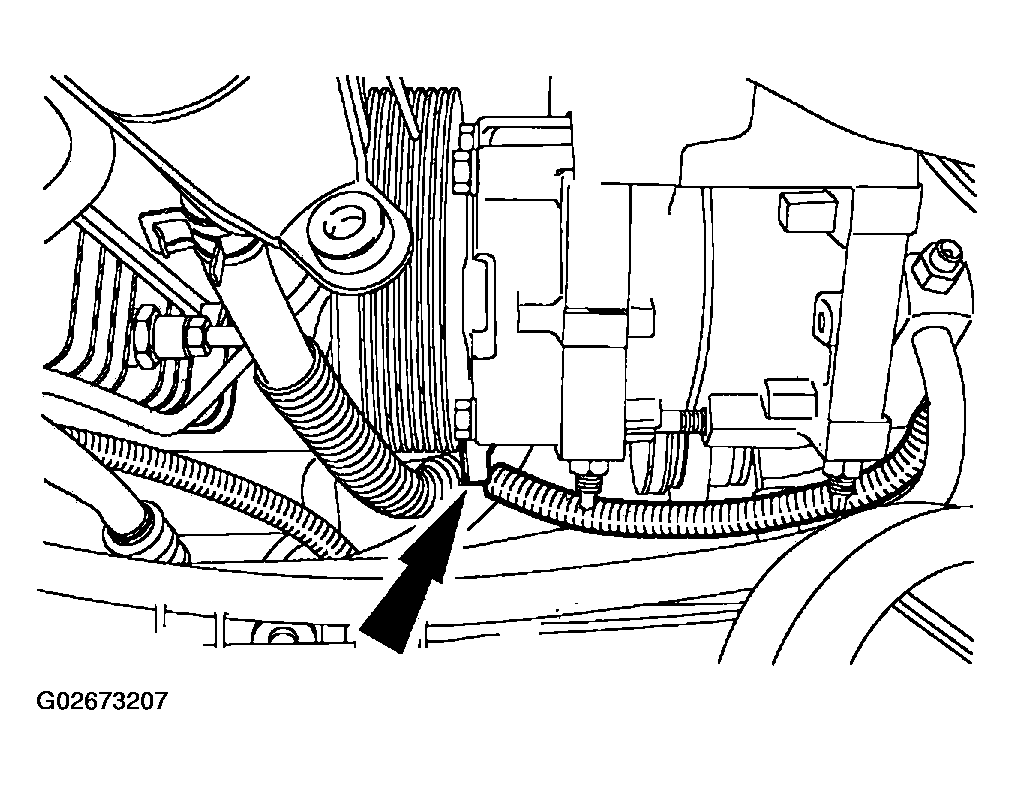

    Fig 3: Disconnecting A/C Compressor Electrical Connector
    G02673207Courtesy of MAZDA MOTORS CORP.
  6. Loosen the bolt and disconnect the compressor manifold and tube assembly from the A/C compressor.

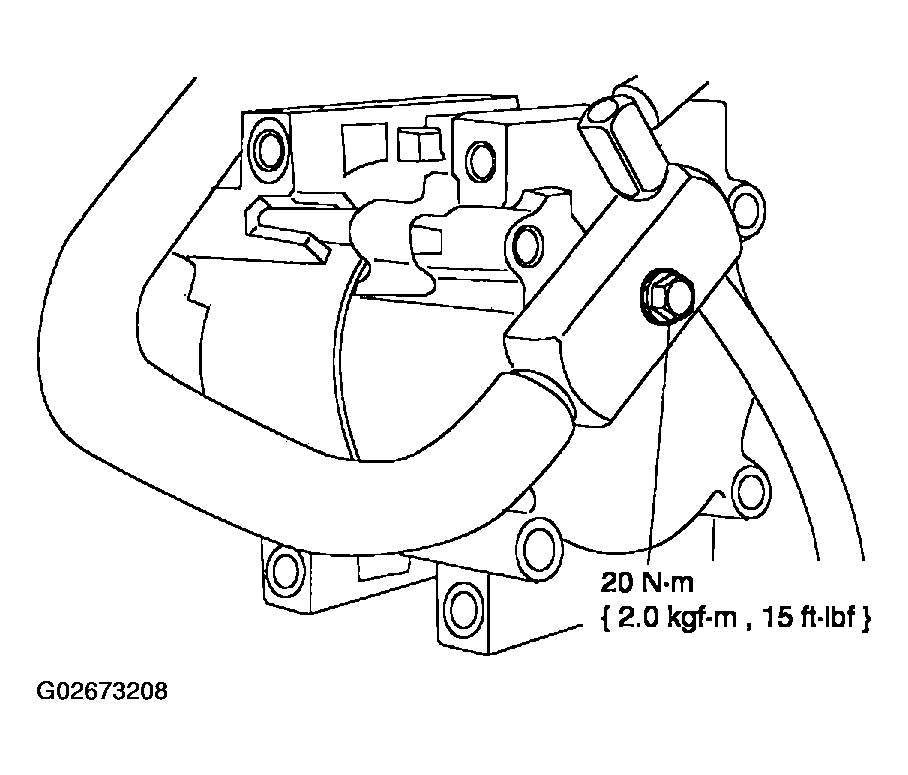

    Fig 4: Disconnecting A/C Compressor Manifold & Tube Assembly
    G02673208Courtesy of MAZDA MOTORS CORP.
  7. Remove the pin-type retainers and position aside the inner fender well access cover.

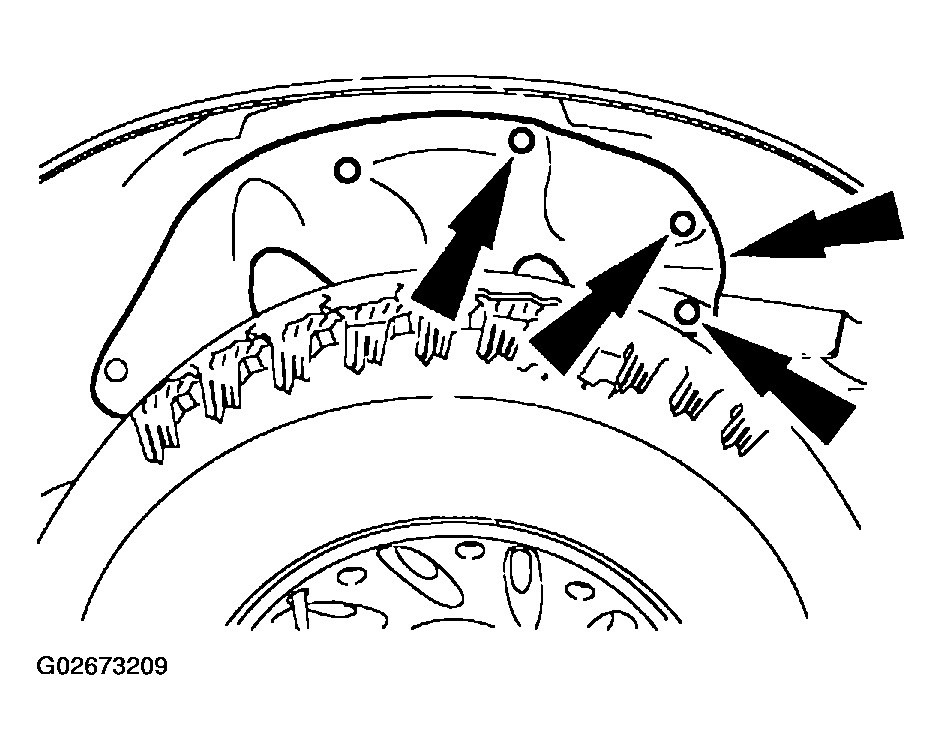

    Fig 5: Removing Inner Fender Well Access Cover
    G02673209Courtesy of MAZDA MOTORS CORP.
    NOTE: The two lower nuts and studs are accessible through the inner fender well.
  8. Remove the four nuts, four studs, and the A/C compressor.
    • Discard the O-ring seals.
  9. To install, reverse the removal procedure.
    • If a new A/C compressor is to be installed, the A/C compressor clutch field coil and the A/C clutch plate must be transferred from the old unit. See MAGNETIC CLUTCH REMOVAL/INSTALLATION  .
    • Lubricate the refrigerant system with the correct amount of clean refrigerant oil. See REFRIGERANT OIL ADDITION  .
    • Evacuate, leak test, and charge the refrigerant system. See REFRIGERANT SYSTEM TESTS  .
    • Install new O-ring seals lubricated in clean refrigerant oil.
  10. Evacuate, leak test, and charge the refrigerant system. See REFRIGERANT SYSTEM TESTS  .
